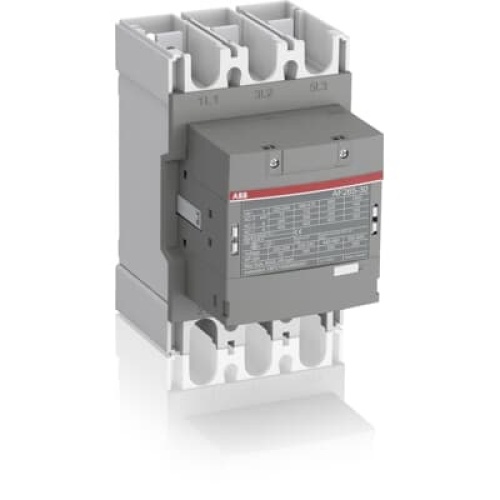

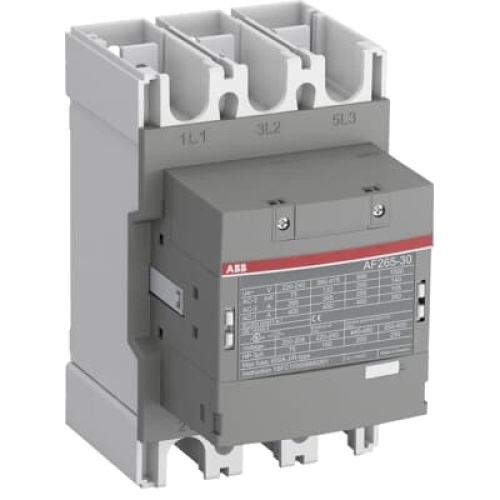

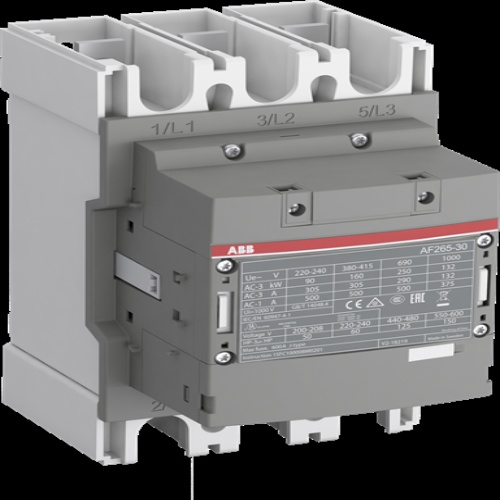

ABB AF265N5R-30-22-14 - 250/500 VAC, 3P, 50/60 Hz

ABB AF265N5R-30-22-14 - AF265N5 NEMA rated contactors are mainly used for directionally controlling 3-phase motor circuits up to 575 V AC. These devices include two 3-pole contactors, a mechanical interlock, side-mounted auxiliary contacts for electrical interlocking, power bus (see diagram to the left), and are mounted on a backplate. control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz and 20...500 V DC - can manage large control voltage variations - reduced panel energy consumption - very distinct closing and opening - can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request). built-in surge suppression

Specifications
Starter Frequency	60 Hz
Starter NEMA Size	5
Starter HP	200 HP @ 575 VAC 3 Phase
Starter Coil Voltage	500 VAC
Starter HP	100 HP @ 230 VAC 3 Phase
Starter HP	75 HP @ 200 VAC 3 Phase
Starter Frequency	50 Hz
Starter Poles	Three Pole
Manufacturer	ABB
Starter Coil Voltage	250 VAC
Component	NEMA Reversing Contactor
