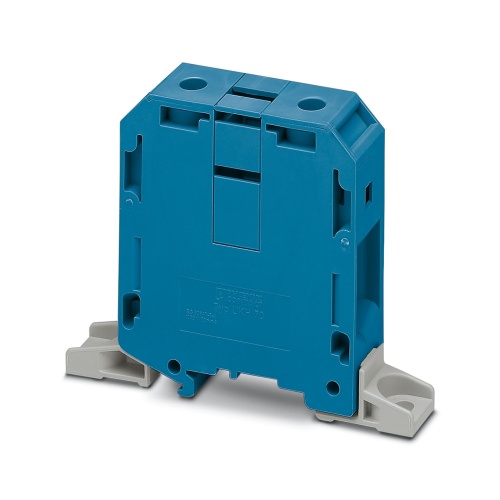

Phoenix Contact 3247063 High-current terminal block UKH 70-F BU
Normally In Stock
Code: 40747
Phoenix Contact UKH 70-F BU - High-current terminal block, 1 Postion - 3247063
Condition: New
Usually ships Same Day or Next Day$35.77
Sale Price
$29.81
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3247063 The terminal block features a high-current rating with a nominal voltage of 1000 V and an impressive current capacity of 192 A. It accommodates two connections and has one position for insertion, secured by a screw connection method. The rated cross-section is 70 mm2, ranging from 16 mm2 to the maximum, while the mounting type relies on direct screw connection and boasts a blue color scheme.
Specifications
Component
Terminal Block
Manufacturer
Phoenix Contact
Features

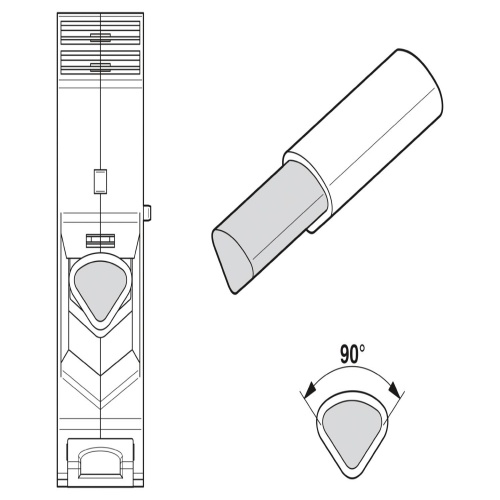

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Screw locking by means of spring-loaded elements in the clamping part
Tested for railway applications
Low contact resistance of the contact surface due to ribbing
Downloads

Code: 40747
Phoenix Contact 3247063 High-current terminal block UKH 70-F BU
$35.77
Sale Price
$29.81
