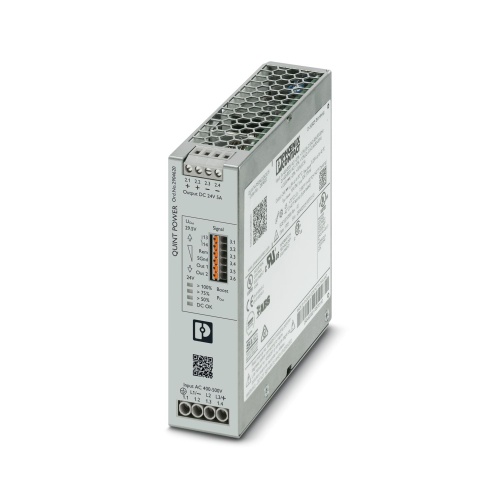

Phoenix Contact 2904620 Power supply QUINT4-PS/3AC/24DC/5
Normally In Stock
Code: 36883
QUINT4-PS/3AC/24DC/5 Phoenix Contact QUINT4-PS/3AC/24DC/5. 24 VDC output 5 Amp Premium Power Supply(Class 1 Div 2) with input voltage 3-phase 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F. Din rail mount Screw Connection.
Condition: New
Usually ships Same Day or Next Day$260.77
Sale Price
$217.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2904620 A primary-switched QUINT POWER power supply is available that offers flexible output options via its characteristic curve selection, along with the added feature of SFB technology for selective fuse breaking, all controlled through an NFC interface, capable of accepting a 3-phase input and delivering up to 24V DC at 5A output.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
120 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
Easy system extension thanks to static boost
starting of difficult loads thanks to dynamic boost
Preventive function monitoring indicates critical operating states before errors occur
Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability
SFB technology trips standard circuit breakers selectively, loads that are connected in parallel continue working
High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds
Robust design thanks to metal housing and wide temperature range from -40°C to +70°C
Worldwide use thanks to the wide range input and international approval package
Downloads
Phoenix 2904620 CAD data International.dxfPhoenix 2904620 CAD data International.pdfPhoenix 2904620 CAD data International.stpPhoenix 2904620 Data Sheet English.pdfPhoenix 2904620 Manual English.pdfPhoenix 2904620 Manufacturers declaration English.pdfPhoenix 2904620 Manufacturers declaration International-2.pdfPhoenix 2904620 Manufacturers declaration International.pdfPhoenix 2904620 Package Slip International.pdfPhoenix 2904620 Software International.zipPhoenix 2904620 Tender Text English.zipPhoenix 2904620 Various English.pdfPhoenix 2904620 Various English.wmv
