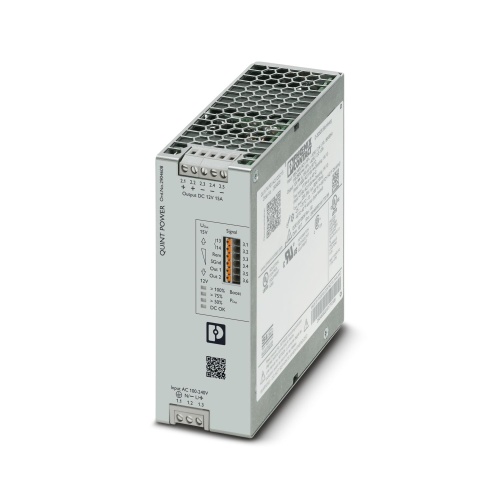

Phoenix Contact 2904608 Power supply unit QUINT4-PS/1AC/12DC/15
Normally In Stock
Code: 36871
QUINT4-PS/1AC/12DC/15 Phoenix Contact QUINT4-PS/1AC/12DC/15. 12 VDC output 15 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F. Din rail mount.
Condition: New
Usually ships Same Day or Next Day$381.53
Sale Price
$317.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2904608 A primary-switched QUINT POWER power supply unit offers flexibility in its output characteristics while incorporating advanced features such as Selective Fuse Breaking technology for safe operation and an NFC interface for easy connectivity. The device accepts a single-phase input and provides a DC output of 12V with a maximum current capacity of 15A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
12 VDC
Power Supply Watts
180 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
15 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds
Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability
Power reserve for easy system extension thanks to static boost with sustained power of up to 125% and ability to start difficult loads thanks to dynamic boost with up to 200% for 5 seconds
Preventive function monitoring indicates critical operating states before errors occur
Robust design thanks to metal housing and wide temperature range from -40°C to +70°C
Worldwide use thanks to the wide range input and international approval package
Downloads
Phoenix 2904608 CAD data International.dxfPhoenix 2904608 CAD data International.pdfPhoenix 2904608 CAD data International.stpPhoenix 2904608 Data Sheet English.pdfPhoenix 2904608 Manufacturers declaration English.pdfPhoenix 2904608 Manufacturers declaration International-2.pdfPhoenix 2904608 Manufacturers declaration International.pdfPhoenix 2904608 Package Slip International.pdfPhoenix 2904608 Software International.zipPhoenix 2904608 Tender Text English.zipPhoenix 2904608 Various English.pdfPhoenix 2904608 Various English.wmv
