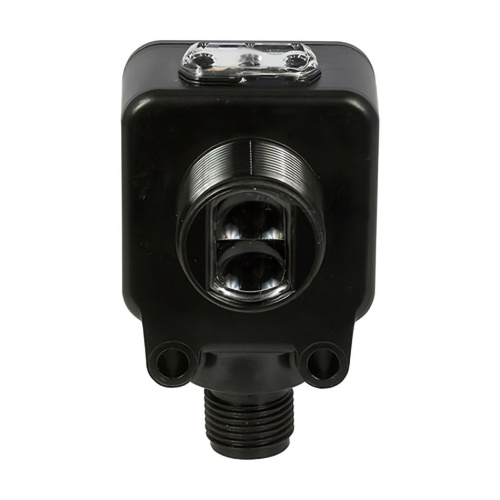

Eaton E65-SMPPS9196 Rectangular Body Photoelectric Sensor
Normally In Stock
Code: 358922
Eaton E65-SMPPS9196 - E65 Series, 0 - 4 Inches Sensing Range - 200 mA at 50 VDC/264 VAC - Lens: PC,Body: cycoloy,Cable jacket: PVC - Marginal gain: orange,Output status: red,Power on: green
Condition: New
Usually ships Same Day or Next Day$379.12
Sale Price
$315.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E65-SMPPS9196 - Sensor distance: 4 In., 100 mA max DC, Beam Status PNP, Health PNP Open Collector, 100 mA at 30 Vdc, 4 Pin AMP Connector, 10-30 Vdc input, Background Suppression, 1.5 Ft. (.5m)
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 6P
Component
Photoelectric Sensor
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Connection Type
4 Pin Dual Key Micro Connector
(Instrument-Sensor) Supply Voltage
18-50 VDC
(Instrument-Sensor) Type
Retroreflective
(Instrument-Sensor) Temperature Range
-13 °F - 131 °F
(Instrument-Sensor) Span
0 - 4 In
(Instrument-Sensor) Contact Rating
200 Ma At 50 VDC
(Instrument-Sensor) Contact Rating
200 Ma At 264 VAC
(Instrument-Sensor) Supply Voltage
18-264 VAC
Features
Highly visible LED indicators for power, output and TargetLock
TargetLock simplifies setup and ensures the sensor operates at the highest level of reliability possible
PerfectProx models sense different colored targets at the same range and ignore objects in the background
AC/DC models operate on either 18–264 Vac or 18–50 Vdc
DC-only models feature both NPN and PNP outputs
Visible beam on all models lets you see exactly where the sensor is pointing
Compact size to fit in tight spaces
Multiple mounting options including industry standard 18 mm threads
Reverse polarity, overload and short circuit protection
Full family includes thrubeam, polarized reflex, diffuse reflective and PerfectProx background rejection
