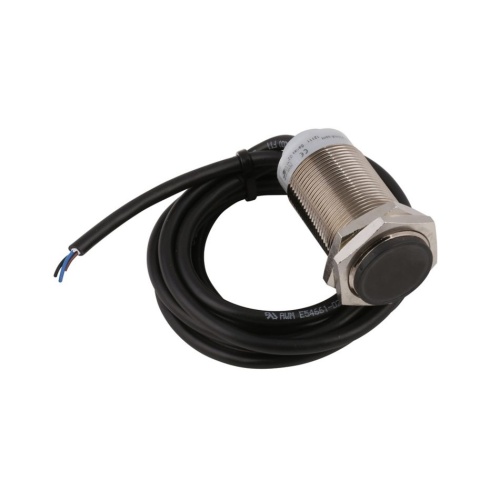

Eaton E57-30LE22-B1D Inductive Proximity Sensor
Normally In Stock
Code: 358017
Eaton E57-30LE22-B1D - E57 Series, 0 - 22 mm Sensing Range - 1 NC - 500 mA/300 mA at 30 VDC/48 VDC - Front cap: PPS,End bell: PC,Tube: stainless steel - Green power up turns red when output energized
Condition: New
Usually ships Same Day or Next Day$435.90
Sale Price
$363.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E57-30LE22-B1D - E57 Premium+ Series Tubular Inductive Proximity Sensor Enclosure, 1.18 dia, dist. 22 mm, PNP, NC, 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc, 4 Pin M12 Connector, 6-48 Vdc input, Auto reset short circuit, Semi-shielded
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) Size
M30
(Instrument-Sensor) Contact Configuration
1 NC
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6P
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Connection Type
4 Pin
(Instrument-Sensor) Supply Voltage
6-48 VDC
(Instrument-Sensor) Contact Rating
500 Ma At 30 VDC
(Instrument-Sensor) Contact Rating
300 Ma At 48 VDC
(Instrument-Sensor) Span
0 - 22 mm
Features
Stainless steel body
Operating voltage 10 – 30 Vdc
Short-circuit protection
Laser-engraved label
360-degree LED indicato
