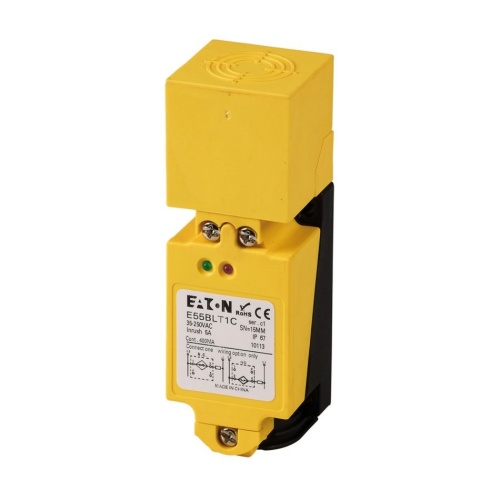

Eaton E55BLT1E Inductive Proximity Sensor
Normally In Stock
Code: 357944
Eaton E55BLT1E - E55 Series, 0 - 31 mm Sensing Range - 1 NC or 1 NO - 400 mA at 250 VAC - PBT resin - Output on,Power on
Condition: New
Usually ships Same Day or Next Day$600.61
Sale Price
$500.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E55BLT1E - Inductive Proximity Limit Switch Sensor, E55, 31 mm range, Unshielded, Power ON, output ON, Screw Terminals, 2-wire, 400 mA at 250V, 2-wire AC, NO or NC, 35-250V
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Connection Type
Screw Terminal
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Connection Type
2 Wire
(Instrument-Sensor) Contact Configuration
1 NC Or 1 NO
(Instrument-Sensor) Type
Inductive Proximity Limit Switch Sensor
(Instrument-Sensor) Contact Rating
400 Ma At 250 VAC
(Instrument-Sensor) Supply Voltage
35-250 VAC
(Instrument-Sensor) Span
0 - 31 mm
Features
Nonmetallic housing offers excellent resistance to corrosion
Same form factor and mounting as standard limit switches for easy retrofit
Sensor head features five sensing positions (top and all four sides) that can be easily changed in the field
Long sensing ranges up to 40 mm
