Code: 357695

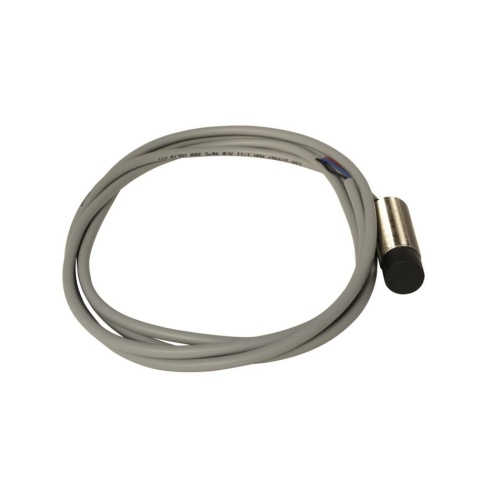

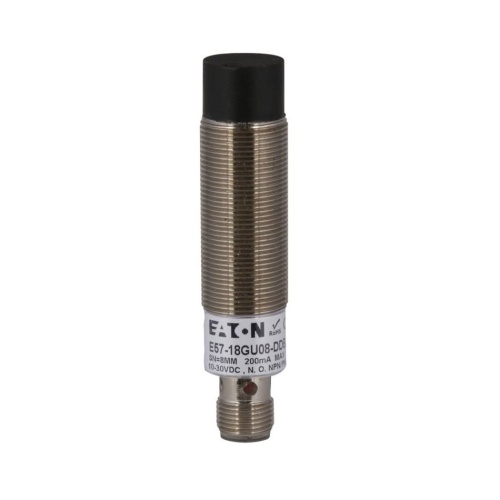

Eaton E57-18GU08-DDB Inductive Proximity Sensor
Normally In Stock
Eaton E57-18GU08-DDB - E57 Series, 0 - 8 mm Sensing Range - 1 NC - 100 mA at 30 VDC - Nickel plated brass - Output ON
Condition: New
Usually ships Same Day or Next Day$111.25
Sale Price
$92.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E57-18GU08-DDB - Inductive Global Proximity Sensor, E57, 8 mm range, Straight, 18 mm, Unshielded, Output ON, M12, 100 mA at 10-30 Vdc, 4 pin, <2.0% sensing range, 2-wire DC, NC, 10-30 Vdc
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Size
M18
(Instrument-Sensor) Contact Configuration
1 NC
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) Span
0 - 8 mm
Manufacturer
Eaton
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Connection Type
4 Pin
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Connection Type
2 Wire
(Instrument-Sensor) Contact Rating
100 Ma At 30 VDC
(Instrument-Sensor) Type
Inductive Global Proximity Sensor
Features
Stainless steel body
Operating voltage 10 – 30 Vdc
Short-circuit protection
Laser-engraved label
360-degree LED indicato
Downloads
