Code: 357584

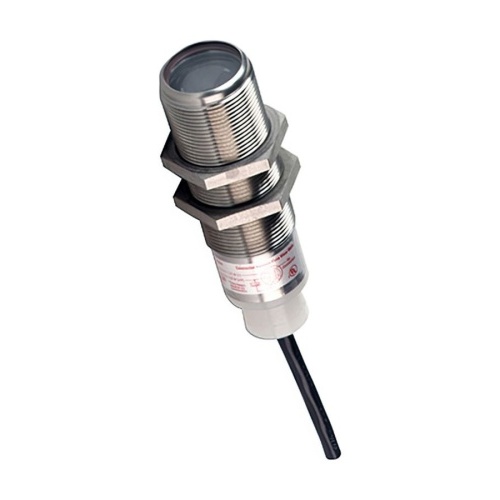

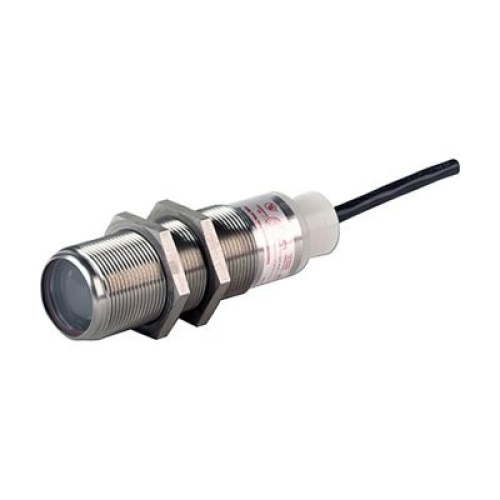

Eaton E58-30TS250-GA-FSC Harsh Duty Photoelectric Sensor
Normally In Stock
Eaton E58-30TS250-GA-FSC - E58 Series, 0 - 800 Feet Sensing Range - Stainless steel - Power on: red
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$1032.26
Sale Price
$860.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E58-30TS250-GA-FSC - E58 Tubular 30mm Photoelectric Sensor, Photoelectric, 1.18 dia., Forward Viewing, Sensor distance 800 Ft., Stainless Steel enclosure, 6.6 Ft. (2m) Cable, 20-132 Vac 50/60 Hz or 15-30 Vdc input
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Size
M30
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 3R
(Instrument-Sensor) NEMA Protection
NEMA 6P
Component
Photoelectric Sensor
(Instrument-Sensor) NEMA Protection
NEMA 2
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Temperature Range
-40 °F - 131 °F
(Instrument-Sensor) Supply Voltage
20-132 VAC
(Instrument-Sensor) Supply Voltage
15-30 VDC
(Instrument-Sensor) Span
0 - 800 Ft
(Instrument-Sensor) Cable Length
6.6'
Features
Ideal for automotive applications where exposure to lubricants, cutting fluids, coolants and glycols is common.
A smooth-body version is a great choice for food-processing applications to withstand high-pressure chemical washdowns, sanitizers, surfactants and cleansing agents.
Highly refined optics provide long sensing ranges through high levels of contamination.
PerfectProx technology allows for excellent background rejection and high excess gain.
Visible sensing beams enable easy setup.
The output status indicator is the brightest available from any sensor manufacturer, providing visibility from any angle in any lighting condition.
The industry's only background rejection sensors with a 2-wire circuit design.
