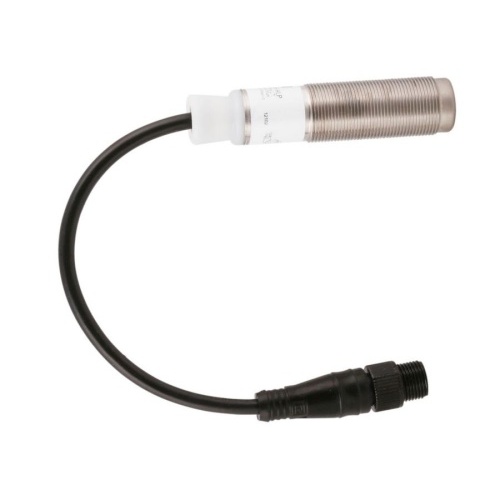

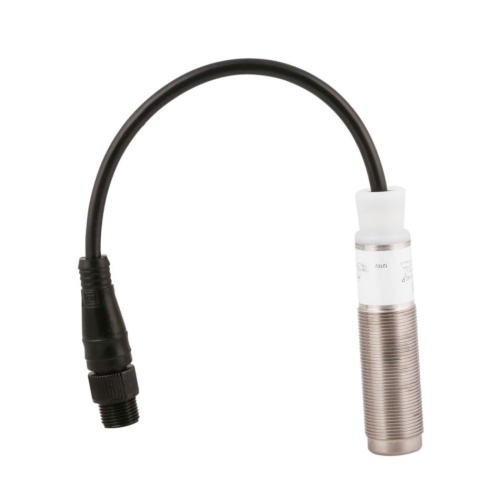

Eaton E58-18DP100-HLP Harsh Duty Photoelectric Sensor
Normally In Stock
Code: 357478
Eaton E58-18DP100-HLP - E58 Series - 100 mA at 30 VDC - 303 stainless steel - Output ON, flashes when latched
Condition: New
Usually ships Same Day or Next Day$671.32
Sale Price
$559.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E58-18DP100-HLP - Perfect Prox Photoelectric Sensor, E58, Back Ground Suppression, Straight, 18 mm, Output ON, flashes when latched, M12, 100 mA at 10-30 Vdc, 4 pin, NPN and PNP open collector, 10-30 Vdc
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Type of Operator
NPN
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) Size
M12
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 3R
(Instrument-Sensor) NEMA Protection
NEMA 6P
Component
Photoelectric Sensor
(Instrument-Sensor) NEMA Protection
NEMA 2
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Connection Type
4 Pin
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Type
Background Suppression
(Instrument-Sensor) NEMA Protection
NEMA 12K
(Instrument-Sensor) Temperature Range
-40 °F - 131 °F
(Instrument-Sensor) Contact Rating
100 Ma At 30 VDC
Features
Ideal for automotive applications where exposure to lubricants, cutting fluids, coolants and glycols is common.
A smooth-body version is a great choice for food-processing applications to withstand high-pressure chemical washdowns, sanitizers, surfactants and cleansing agents.
Highly refined optics provide long sensing ranges through high levels of contamination.
PerfectProx technology allows for excellent background rejection and high excess gain.
Visible sensing beams enable easy setup.
The output status indicator is the brightest available from any sensor manufacturer, providing visibility from any angle in any lighting condition.
The industry's only background rejection sensors with a 2-wire circuit design.
