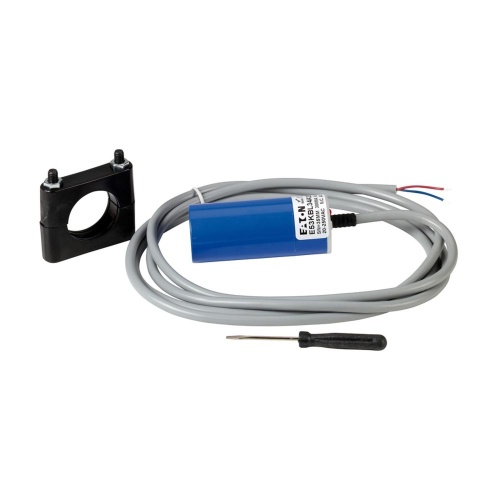

Eaton E53KBL34T110 Capacitive Proximity Sensor
Normally In Stock
Code: 357376
Eaton E53KBL34T110 - E53 Series, 0 - 25 mm Sensing Range - 1 NO - 300 mA Solid State Output - Body: polyoxymethylene (POM),Mounting Nuts: nylon 66 (PA66) - Output status
Condition: New
Usually ships Same Day or Next Day$586.31
Sale Price
$488.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E53KBL34T110 - E53 Series Tubular Capacitive Proximity Sensor, 1.34 dia, dist 25 mm, 300 mA max DC, NO NPN Open Collector, 300 mA SS Output, 8 Ft. (2.5m) Cable, 10–30 Vdc input, < 5% accuracy, Short circuit and reverse polarity
Specifications
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Contact Configuration
1 NO
(Instrument-Sensor) Type of Operator
NPN
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 2
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
Component
Capacitive Proximity Sensor
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Contact Rating
300 Ma Solid State Output
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Size
34 mm
(Instrument-Sensor) Span
0 - 25 mm
(Instrument-Sensor) Cable Length
8 Ft
Features
Detect liquids, powders and other materials that are difficult or impossible with other sensor types
Plastic body is corrosion resistant
Sensitivity adjustment
Output indicator LED
