Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

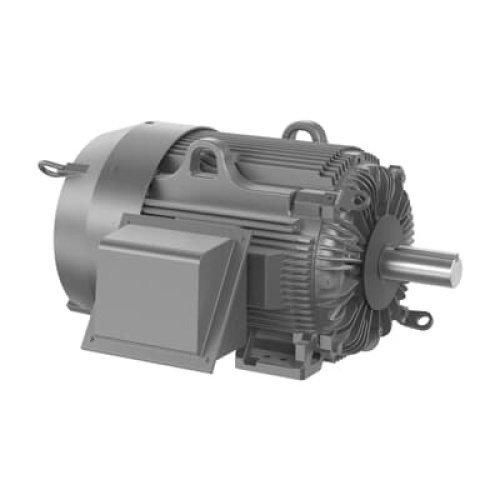

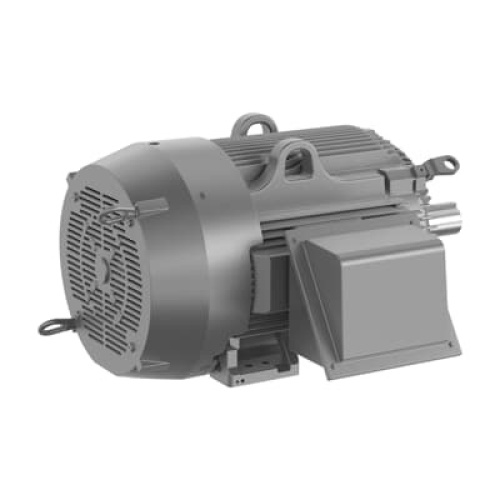

Baldor ECTM4409T-4G - TEFC, 3 Phase, 100 HP , 60 Hz
Normally In Stock
Code: 314032
Baldor ECTM4409T- 4G - Totally Enclosed Fan Cooled - 1200 RPM - 460 Volt - 119 Amp - 100 HP - Iron - 444T Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$42639.11
Sale Price
$35532.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor ECTM4409T-4G - The General Purpose motors offered by Baldor-Reliance® are single phase and three phase industrial motors designed to surpass the energy efficiency standards in the United States, Canada, and Mexico. These motors boast high starting torque, overload capacity, and exceptional reliability. They come in various enclosure constructions, ranging from open designs for moderate water and dust exposure to cast iron designs for harsh environments with water, dust, and corrosive elements. The Super-E® motors offer NEMA Premium efficiency and are ready for use with inverters, featuring wide variable torque speed ranges as a standard feature. Additionally, these motors are backed by a 3-year warranty, ensuring longevity and customer satisfaction. For any special requirements beyond the listed capabilities, customers are advised to consult their sales representative.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
100 HP
Motor Frame Model
444T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor Amperage (Full Load)
119 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
Severe-duty construction with a rugged cast iron frame and corrosion-resistant hardware and coatings, built to withstand the toughest environments.
Four-barrier shaft sealing (lip contact seal, V-ring slinger, dome slinger, double-sealed bearings) on the drive end combined with a lipped conduit lid and lead separator gasket delivers enhanced protection with an IP55 rating.
Suitable for Inverter Duty per NEMA MG1 Part 31.4.4.2
*Internally mounted shaft grounding ring installed on all -G suffix
Heating strips warm the motor windings to prevent moisture buildup and condensation, protecting against corrosion and performance loss.
Equipped with a tapped drive end shaft and endplate for secure vertical lifting, plus an easily installed eyebolt for versatile lifting options.
