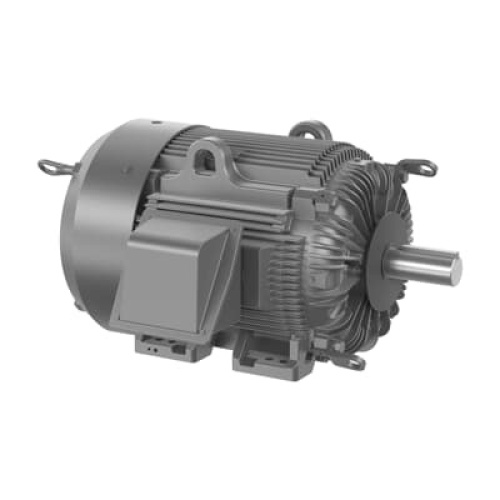

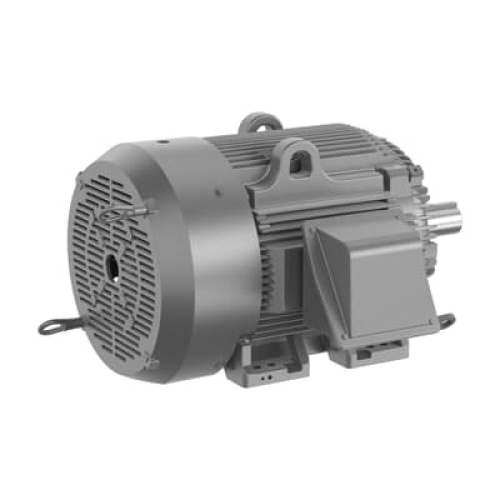

Baldor ECTM4404T-G - TEFC, 3 Phase, 75 HP , 60 Hz
Normally In Stock
Code: 314030
Baldor ECTM4404T- G - Totally Enclosed Fan Cooled - 1200 RPM - 460 Volt - 86.9 Amp - 75 HP - Iron - 405T Frame - Class B Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$38765.86
Sale Price
$32304.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor ECTM4404T-G - Introducing Baldor motors, a leading name in industrial electric motors and power transmission products. With a rich legacy of excellence and reliability, Baldor offers a wide range of high-quality motors designed to meet diverse industrial needs. From energy-efficient solutions to durable construction, Baldor motors are trusted for their performance and longevity in various applications, including manufacturing, HVAC, pumps, fans, compressors, and more. With customizable options and compliance with industry regulations, Baldor motors ensure efficient and reliable operation, making them the preferred choice for businesses seeking top-notch solutions for their remote supply needs.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Horsepower
75 HP
Motor Frame Model
405T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor Insulation Class
Class B Insulation
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Amperage (Full Load)
86.9 Amp
Features
Severe-duty construction with a rugged cast iron frame and corrosion-resistant hardware and coatings, built to withstand the toughest environments.
Four-barrier shaft sealing (lip contact seal, V-ring slinger, dome slinger, double-sealed bearings) on the drive end combined with a lipped conduit lid and lead separator gasket delivers enhanced protection with an IP55 rating.
Suitable for Inverter Duty per NEMA MG1 Part 31.4.4.2
*Internally mounted shaft grounding ring installed on all -G suffix
Heating strips warm the motor windings to prevent moisture buildup and condensation, protecting against corrosion and performance loss.
Equipped with a tapped drive end shaft and endplate for secure vertical lifting, plus an easily installed eyebolt for versatile lifting options.
