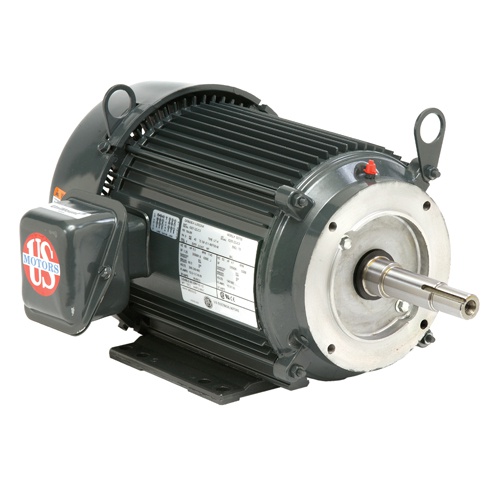

Nidec UJ10P2DJ - TEFC, 1 Phase, 10 HP
Normally In Stock
Code: 312532
Nidec UJ10P2DJ - Totally Enclosed Fan Cooled - 1 Phase - 10 HP - 1800 RPM - 215TCZ Frame - 50/60 Hz - 380 Max Volt - Class F Insulation - Cast Iron
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1700.62
Sale Price
$1417.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec UJ10P2DJ - Introducing the versatile lineup of motors designed for specific applications. The General Purpose Single Phase HVAC, Washdown Agriculture, Commercial Pump Motors are ideal for centrifugal pumps in damp, dusty, or dirty environments. With features like Class F insulation, cast iron frames (280 & up), aluminum frames (180-250), and rolled steel frames (140), these motors deliver reliable and efficient operation. They have a maximum ambient temperature of 40°C and NEMA® Design B performance. Featuring regreasable shaft end bearings, double shielded bearings, removable bases (180-250 frame), lifting provisions (180 frame & up), and conversion kits for customization, they are suitable for close-coupled pump motors, fire pump motors, pool & spa motors, residential water pump motors, and elevator and gate & door motors. Upgrade your equipment with The high-quality motors for exceptional performance and durability.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Horsepower
10 HP
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Voltage
208-230 Volt
Motor Voltage Phases
1 Phase
Motor Voltage
380 Volt
Motor Frame Model
215TCZ
Motor Voltage
190 Volt
Motor Construction
Cast Iron
Manufacturer
Nidec
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Cast Iron Frame 280 & Up, Aluminum 180-250, Rolled Steel 140
Cast Iron End Brackets 280 & Up, 250 Frame and Lower Has Aluminum With Steel Bearing Inserts
40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
Regreasable Shaft End Bearing 180 Frame & Up
Double Shielded Bearings
Removable Base (180 - 250 Frame)
Lifting Provisions 180 Frame & Up
Conversion Kits: Canopy Kits
