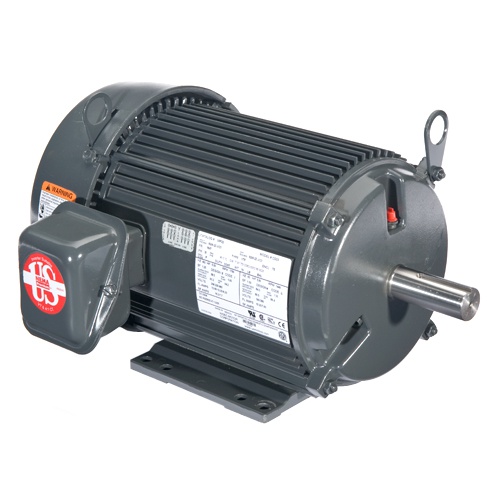

Nidec U5V2B - TEFC, 1800 RPM, 5 HP
Normally In Stock
Code: 312399
Nidec U5V2B - Totally Enclosed Fan Cooled - 5 HP - 1800 RPM - 184T Frame - 60 Hz - 460 Max Volt - Class H Insulation - Cast Iron
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$931.51
Sale Price
$776.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec U5V2B - The Definite Purpose TEFC Hostile Duty motor is designed for demanding applications requiring variable and constant torque. It features INVERTER GRADE® insulation, class F thermostats, and a cast iron frame with corrosion-resistant paint. The motor has a shaft slinger for protection, operates at a 40°C ambient temperature, and has regreasable bearings and lifting provisions. Double shielded bearings are used in certain frame sizes. It has a premium efficient design, class H insulation, and various conversion kits available. This motor is suitable for pumps, fans, blowers, and other inverter-powered applications with variable torque requirements and a speed range of 20:1 or less.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
5 HP
Motor Frame Model
184T
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Insulation Class
Class H Insulation
Motor Construction
Cast Iron
Manufacturer
Nidec
Features
INVERTER GRADE® Insulation System (Meets NEMA®† MG-1 Part 31)
Class F Thermostats (One Per Phase)
Extruded Aluminum Frame (140: Rolled Steel)
Aluminum End Shields With Steel Bearing Inserts
40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
Removable Base 180 Frame & Larger
Lifting Provisions 180 Frame & Larger
Regreasable Shaft-End Bearing 180 Frame & Larger
Sealed Bearings 56-140, Double Shielded Bearings 180-280
Double Dip & Bake With Extra Bracing
Premium Efficient Design, Special Balance, F1 Assembly Position
Class F Insulation, 1.15 S.F. On Sine Wave / 1.0 S.F. On PWM
Constant Horsepower To 90 Hertz
Precision Balance (< 0.08 In/Sec Vibration)
C-Face Footed 1-5 HP
Brake Kits Available 56-210 Frame
Shaft Grounding Ring 140-250 Frame (Updating models to include Grounding Ring, confirm availability at time of order)
