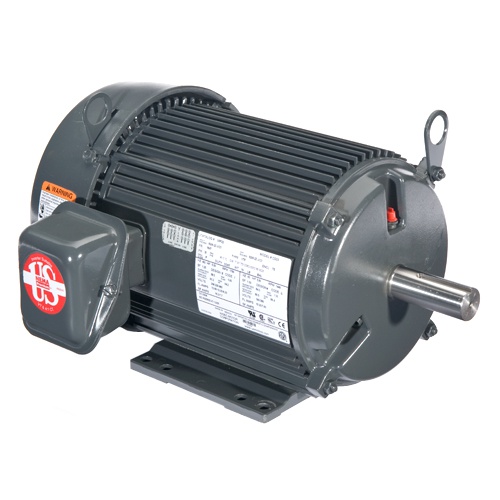

Nidec U34T2BCR - TEFC, 1800 RPM, 0.75 HP
Normally In Stock
Code: 312390
Nidec U34T2BCR - Totally Enclosed Fan Cooled - 0.75 HP - 1800 RPM - 56C Frame - 60 Hz - 460 Max Volt - Class H Insulation - Cast Iron
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$511.00
Sale Price
$425.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec U34T2BCR - The Definite Purpose TEFC Hostile Duty motor is designed for demanding applications requiring variable and constant torque. It features INVERTER GRADE® insulation, class F thermostats, and a cast iron frame with corrosion-resistant paint. The motor has a shaft slinger for protection, operates at a 40°C ambient temperature, and has regreasable bearings and lifting provisions. Double shielded bearings are used in certain frame sizes. It has a premium efficient design, class H insulation, and various conversion kits available. This motor is suitable for pumps, fans, blowers, and other inverter-powered applications with variable torque requirements and a speed range of 20:1 or less.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
0.75 HP
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Insulation Class
Class H Insulation
Motor Construction
Cast Iron
Manufacturer
Nidec
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Shaft Slinger On Pulley End
Full 50 & 60 Hertz Operating Data on Nameplate (03)
Full HP @ 50 Hertz
40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
Sealed Bearings (140 Frame)
Double Shielded Bearings (180 Frame and Up)
Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
Suitable for Wye-Delta Start 250 Frame & Larger
Conversion Kits: C&D Flanges, Drip Cover and Brakes (140 Frame and Up)
