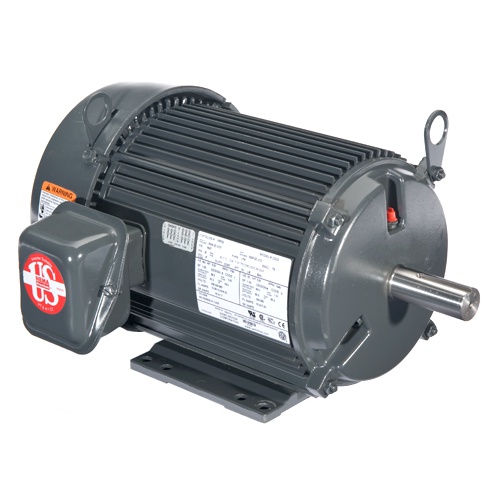

Nidec U32V2BC - TEFC, 1800 RPM, 1.5 HP
Normally In Stock
Code: 312387
Nidec U32V2BC - Totally Enclosed Fan Cooled - 1.5 HP - 1800 RPM - 145TC Frame - 60 Hz - 460 Max Volt - Class H Insulation - Cast Iron
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$640.55
Sale Price
$533.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec U32V2BC - The Definite Purpose TEFC Hostile Duty motor is designed for demanding applications requiring variable and constant torque. It features INVERTER GRADE® insulation, class F thermostats, and a cast iron frame with corrosion-resistant paint. The motor has a shaft slinger for protection, operates at a 40°C ambient temperature, and has regreasable bearings and lifting provisions. Double shielded bearings are used in certain frame sizes. It has a premium efficient design, class H insulation, and various conversion kits available. This motor is suitable for pumps, fans, blowers, and other inverter-powered applications with variable torque requirements and a speed range of 20:1 or less.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Horsepower
1.5 HP
Motor Frame Model
145TC
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Insulation Class
Class H Insulation
Motor Construction
Cast Iron
Manufacturer
Nidec
Features
INVERTER GRADE® Insulation System (Meets NEMA®† MG-1 Part 31)
Class F Thermostats (One Per Phase)
Extruded Aluminum Frame (140: Rolled Steel)
Aluminum End Shields With Steel Bearing Inserts
40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
Removable Base 180 Frame & Larger
Lifting Provisions 180 Frame & Larger
Regreasable Shaft-End Bearing 180 Frame & Larger
Sealed Bearings 56-140, Double Shielded Bearings 180-280
Double Dip & Bake With Extra Bracing
Premium Efficient Design, Special Balance, F1 Assembly Position
Class F Insulation, 1.15 S.F. On Sine Wave / 1.0 S.F. On PWM
Constant Horsepower To 90 Hertz
Precision Balance (< 0.08 In/Sec Vibration)
C-Face Footed 1-5 HP
Brake Kits Available 56-210 Frame
Shaft Grounding Ring 140-250 Frame (Updating models to include Grounding Ring, confirm availability at time of order)
