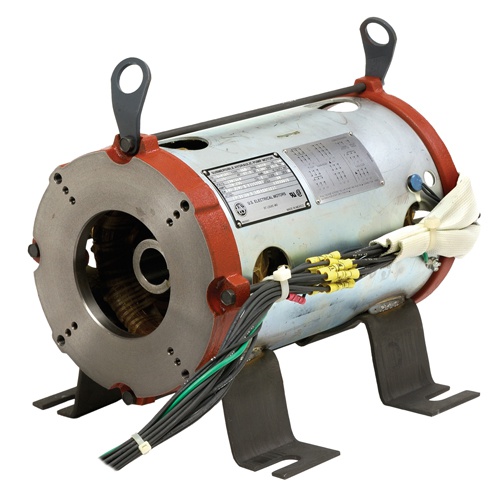

Nidec E3S2A3 - The Special Application Three Phase Submersible Elevator Motors are designed for use in elevators in low-rise buildings. They come in two configurations: Z-Flange and L32 Flange, which are compatible with specific Allweiler and IMO pumps. The motors feature Class F insulation and a zinc-plated frame with lifting provisions on brackets for easy installation. They are equipped with a stainless steel nameplate and a 70°C thermostat located on the motor frame for temperature control. With a single ball bearing design, these motors are suitable for most Allweiler and IMO submersible pumps. They have 112" external leads with butt splices at approximately 12" and 47" from the housing. The motors are CSA certified and UL component recognized, ensuring their quality and compliance with safety standards. They are rated for intermittent duty with high starting frequency capabilities.
