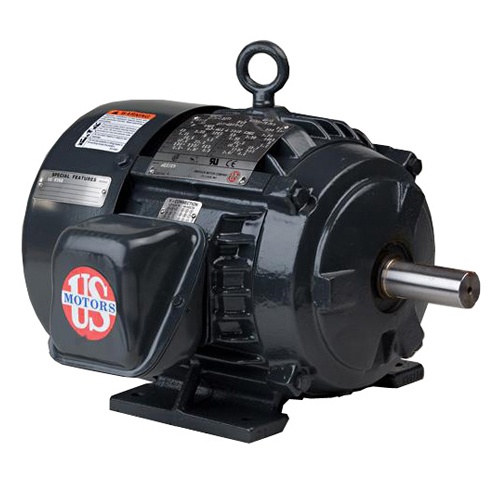

Nidec A50P2C - TEFC, 1800 RPM, 50 HP

Nidec A50P2C - The Definite Purpose Automotive Duty World Motor U Frame Premium Efficient Footed motor is specifically designed for automotive and process industries that require "U" frame sizes. It meets GM7EH, Ford EM-1, and Chrysler NPEM-105 specifications. The motor features Class F insulation, cast iron frame and end brackets (for 180 frame and larger sizes), corrosion-resistant paint, and stainless steel components. It has a shaft slinger for IP54 protection and operates with a service factor of 1.15 at 40°C and 1.0 at 65°C ambient temperature. The motor has regreasable bearings (180 frame and larger) and sealed bearings (56 frame), low vibration levels, and an oversized conduit box. It also includes a steel fan cover for added durability.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Insulation Class	Class F Insulation
Motor Horsepower	50 HP
Motor Frequency	60 Hz
Motor Voltage	460 Volt
Motor RPM's	1800 RPM
Motor Frame Model	365U
Motor Construction	Cast Iron
Manufacturer	Nidec
