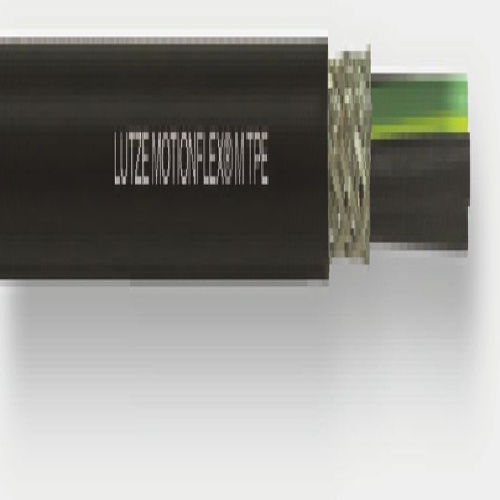

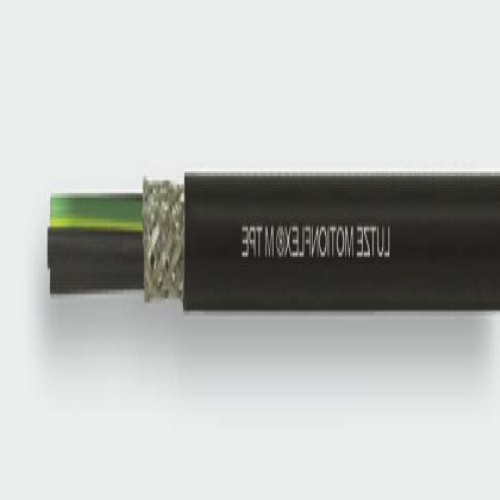

Lutze A4061604 Motionflex® VFD Cable - AWG 16, TPE
Normally In Stock
Code: 299633
Lutze A4061604 - Superflex® Plus VFD Cable - Black - AWG 16 - 6×Cable OD Bending Radius - 4 Conductors - Cu-Wire Tin-Plated - SOLD PER FOOT
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $100 FROM LUTZE FOR PRODUCT TO SHIP
ALL CUT TO LENGTH CABLE IS NON-CANCELLABLE, NON-RETURNABLE
$4.99
Sale Price
$4.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Lutze A4061604 - Introducing our versatile shielded motor supply cable, designed for connecting power to 3-phase motors, VFDs, and Servo Drives. This highly flexible cable is suitable for motion applications with repetitive movement, flexing, and torsional stress. It features a thermoset XLPE construction, offering superior overload and short-circuit temperature resistance. Compliant with NFPA 79 standards, it ensures safe wiring in industrial machinery. With a TC-ER rating, it can be used with cable trays without conduit, reducing installation costs. It holds a WTTC rating for wind power generation and is suitable for dry, damp, or wet conditions. This cable is designed for easy installation with its reduced diameter, and it provides high insulation resistance and low capacitance. It is cutting oil resistant, Ecolab certified for resistance to cleaning agents, and features a specially developed TPE jacket for improved oil resistance. Crush impact resistant, gas/vapor-tight sheath per UL 1277, and flame-retardant, it is suitable for a range of industrial environments.
Specifications
Number of Conductors
4
Conductor
Cu-Wire Tin-Plated
Jacket Characteristics
Flame-Retardant
Jacket Characteristics
Silicone-Free
Manufacturer
Lutze
Bending Radius
6×Cable OD
Jacket Characteristics
Oil Resistant
Jacket Color
Black
Wire Size (AWG)
AWG 16
Jacket Material
TPE
Conductor Insulation
XLPE
Conductor Insulation
XHHW-2
Conductor Insulation
Wet/Dry
Cable
VFD Cable
Rated Voltage (Cable)
600 Volt
Rated Voltage (Cable)
1000 Volt
Temperature Range (Cable)
-15 °C To +80 °C
Weight (Cable)
124 Lbs/Mft
Features
Highly flexible XLPE conductor design
Reduced cable diameter
High insulation resistance
Low capacitance cable
Cutting oil resistant - mineral and bio/vegetable based oil, specially tested with plant based cutting oil.
Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
Improved oil resistance due to specifically developed TPE jacket
Crush impact resistant
Gas/vapor-tight sheath per UL 1277
Sunlight resistant
Flame retardant
Talc free and silicone free
