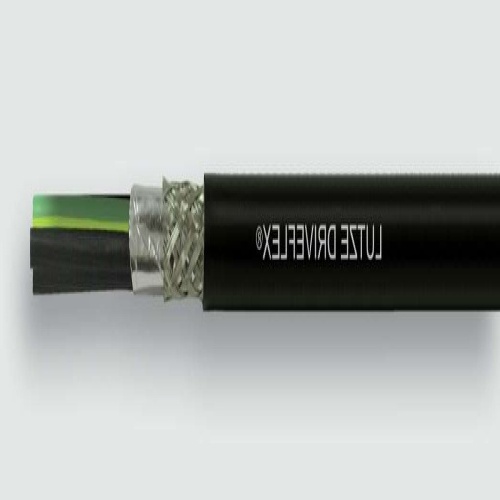

Lutze A1061204 Driveflex® VFD Cable - AWG 12, PVC
Normally In Stock
Code: 299618
Lutze A1061204 - Superflex® Plus VFD Cable - Black - AWG 12 - Bending Radius - 4 Conductors - Cu-Wire Tin-Plated - SOLD PER FOOT
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $100 FROM LUTZE FOR PRODUCT TO SHIP
ALL CUT TO LENGTH CABLE IS NON-CANCELLABLE, NON-RETURNABLE
$5.33
Sale Price
$4.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Lutze A1061204 - Dual-shielded motor supply cable to connect power to 3-phase-motors, VFDs and servo drives,Cable design for harsh industrial environments and operating conditions with high noise levels,Thermoset XLPE insulation offers superior electrical values for VFD applications,Type XHHW-2 insulation offering smaller ODs for general VFD applications,Compliant with NFPA 79 requirements,TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments,WTTC – wind turbine tray cable rating for use in wind power generation,Dry, damp or wet conditions
Specifications
Jacket Material
PVC
Number of Conductors
4
Conductor
Cu-Wire Tin-Plated
Jacket Characteristics
Silicone-Free
Manufacturer
Lutze
Jacket Characteristics
Oil Resistant
Jacket Color
Black
Wire Size (AWG)
AWG 12
Conductor Insulation
XLPE
Conductor Insulation
XHHW-2
Conductor Insulation
Wet/Dry
Cable
VFD Cable
Rated Voltage (Cable)
600 Volt
Rated Voltage (Cable)
1000 Volt
Weight (Cable)
208 Lbs/Mft
Features
Flexible XLPE conductors
Reduced cable diameter
High insulation resistance
Low capacitance insulation
Effective dual layer shield for EMC compliance
Specially formulated jacket for oil resistance and easy strip design
Non-wicking fillers
Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
Crush impact resistant
Gas/vapor-tight sheath per UL 1277
Sunlight resistant
Flame retardant
Direct burial
Talc free and silicone free
