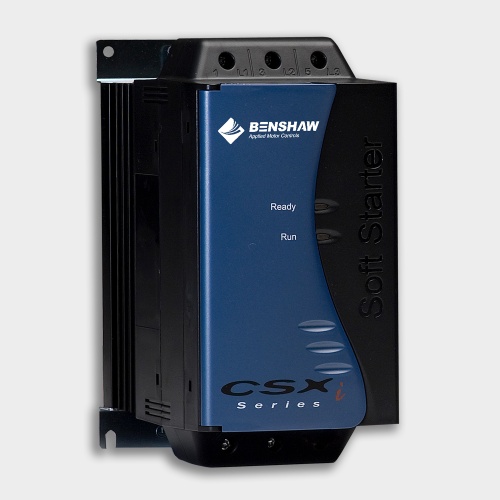

Benshaw CSXi-018-V6-C1 Compact Soft Starter - ND, 15-40 HP @ 230-575 VAC, 42 Amp
Normally In Stock
Code: 294645
Benshaw CSXi-018-V6-C1 - Normal Duty Compact Soft Starter - CSXi Series - 575 VAC - 42 Amp
Condition: New
Usually ships Same Day or Next Day$1240.64
Sale Price
$1033.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw CSXi-018-V6-C1 - CSXi Series Low Voltage Soft Starters are compact and user-friendly solutions designed for standard duty applications. These soft starters offer built-in motor protection and precise control for the smooth starting and stopping of three-phase motors. With a shallow depth of only 6.5 inches (165mm), they can be easily mounted in enclosures with limited space. Ideal for applications like fans and pumps, the CSXi soft starters ensure simple setup and commissioning processes. They feature a protected chassis with built-in bypass and are rated for standard duty operations at 400% current for 6 seconds, supporting line voltages from 200-575VAC and accepting a 120V control voltage.
Specifications
Starter Voltage
575 VAC
Starter Horsepower
40 HP @ 575 V
Starter Coil Voltage (Control)
110-240 VAC
Starter Horsepower
15 HP @ 230 V
Starter Horsepower
30 HP @ 460 V
Manufacturer
Benshaw
Starter Voltage Range
230-575 VAC
Component
Compact Soft Starter
Starter Coil Voltage (Control)
380-440 VAC
Starter Current Rating
42 Amp
Starter Current Rating
40 Amp
Features
BASIC CHASSIS UNITS WITH BUILT-IN BYPASS AND MOTOR OVERLOAD
