Code: 294624

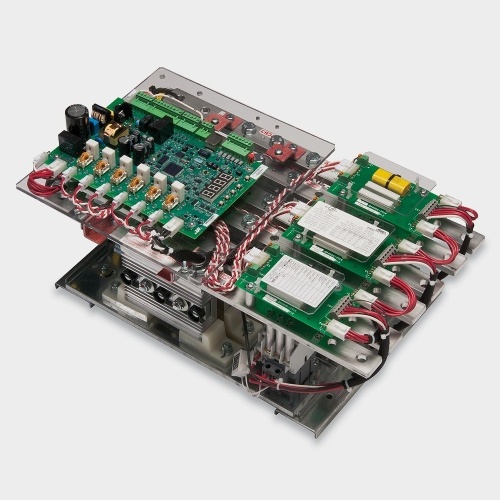

Benshaw RB2-1-S-027A-11C Soft Starter - SD, 7.5-25 HP @ 208-575 VAC, 27 Amp
Normally In Stock
Benshaw RB2-1-S-027A-11C - Severe Duty Soft Starter - RB2 Series - 208-575 VAC - 27 Amp - Open Chassis
Condition: New
Usually ships Same Day or Next Day$2906.27
Sale Price
$2421.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Benshaw RB2-1-S-027A-11C - RB2 Open Chassis Soft Starters are reliable, solid state starters suitable for various industrial applications. They come in different variants (Standard Duty, Heavy Duty, or Severe Duty) and voltage ratings ranging from 208-575VAC up to 838A. The RB2 soft starter features a modular design with separate poles for each phase, including an integral bypass contactor for easy maintenance. 's MX2 control technology offers adjustable overload settings for motor protection and customizable motor ramp profiles based on load. Programming options include a board-mounted LED keypad, Modbus register mapping, or an optional remote mount LCD keypad.
Specifications
Starter Coil Voltage (Control)
120 VAC
Starter Horsepower
10 HP @ 240 V
Starter Horsepower
15 HP @ 480 V
Starter Horsepower
20 HP @ 480 V
Starter Horsepower
20 HP @ 575 V
Starter Horsepower
25 HP @ 575 V
Starter Horsepower
5 HP @ 208 V
Starter Horsepower
7.5 HP @ 208 V
Manufacturer
Benshaw
Starter Voltage Range
208-575 VAC
Starter Housing
Open
Starter Voltage
208-575 VAC
Component
Open Chassis Starter
Starter Horsepower
7.5 HP @ 240 V
Starter Current Rating
27 Amp
Starter Current Rating
24 Amp
Features
Modular power stack assembly for ease of maintenance
ModBus standard/other Fieldbus optional
Multiple starting ramps for various applications
Integrated metering system diagnostics
Fieldbus
Ethernet IP/TCP
Profibus
DeviceNet
Integral bypass contactor for efficient operation, eliminating the need for external fans
Integrated motor protection
Dual ramp capability for loaded/ unloaded applications
Power stack has multiple ratings
