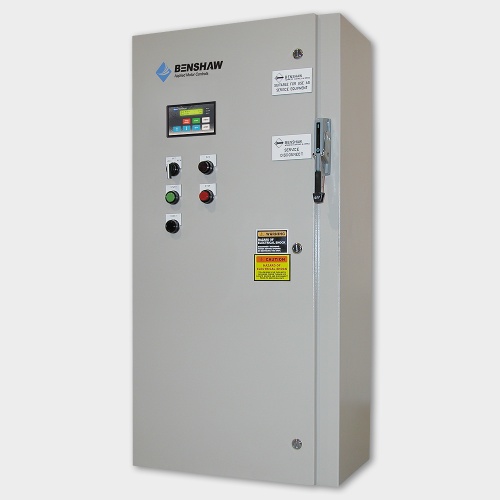

Benshaw RX2E-050-480-12KP Soft Starter - SD, 50 HP @ 480 VAC, 65 Amp
Normally In Stock
Code: 294617
Benshaw RX2E-050-480-12KP - Severe Duty Soft Starter - RX2E Series - 480 VAC - 65 Amp - NEMA 12 - 100 Amp Circuit Breaker
Condition: New
Usually ships Same Day or Next Day$9976.58
Sale Price
$8313.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw RX2E-050-480-12KP - RX2E Enclosed Combo Starters are specifically engineered for the most challenging and critical applications, offering severe duty ratings and dual redundant soft starters. These starters come equipped with essential components such as a circuit breaker, full voltage rated emergency bypass contactor, door-mounted Start/Stop pushbuttons, Local/Off/Remote selector switch, and a door-mounted MX2 keypad. Available in NEMA12 or NEMA3R enclosures, the combo starters feature a full voltage rated bypass contactor that serves as both a running duty bypass contactor in soft starter mode. Leveraging 's MX2 control technology, these starters provide basic motor protection with adjustable overload settings and customizable motor ramp profiles, allowing tailoring to the motor load. The RX2E combo starters can be programmed effortlessly using the door-mounted LCD keypad or Modbus register mapping, providing convenience and flexibility in operation.
Specifications
Starter Coil Voltage (Control)
120 VAC
Starter Voltage
480 VAC
Starter Horsepower
50 HP @ 480 V
Manufacturer
Benshaw
Starter Breaker Rating
100 Amp
Starter Housing
NEMA 12
Component
Combination Soft Starter
Starter Current Rating
65 Amp
Features
NEMA 12, dual redundant, combination/circuit breaker
Shunt trip on main circuit breaker
500% — 30 seconds rated solid state starter, UL certified and listed
1800 PIV rated SCRs, UL certified and listed
125% continuous duty rated solid state starter, UL certified and listed
Selector switch for selecting solid state or full voltage operation mounted inside enclosure
Full HP rated bypass contactor with a 1.15 service factor, wired for normal bypass operation and full voltage start and run operation, with normally open auxiliary contact
Separately mounted “SPE” series overload relay wired for full voltage start and run operation.
110 volt control power transformer with primary and secondary fuses
Door-mounted start and stop push-buttons
Door-mounted keypad
Door-mounted run indicating light
Door-mounted local-off remote switch
Door-mounted overload reset
Terminal strip mounted inside enclosure for remote start/stop connection
Auxiliary relay with (2) Form C run contacts
Benshaw MX2 or MX3 programmable motor controller with soft start, soft stop and motor protection capabilities
RS485 ModBus communications
