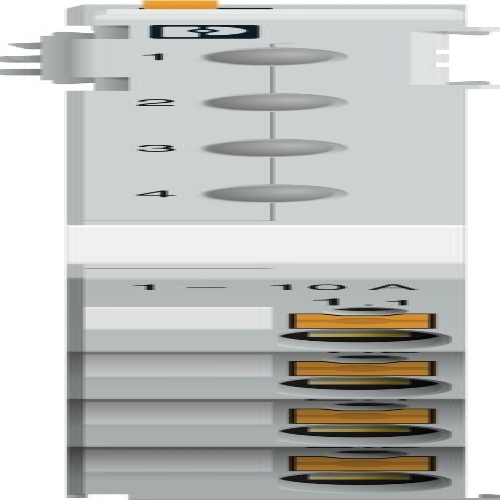

Phoenix Contact 1115658 Electronic circuit breaker CAPAROC E4 12-24DC/1-10A
Normally In Stock
Code: 240880
CAPAROC E4 12-24DC/1-10A Phoenix Contact 1115658 Electronic circuit breaker - CAPAROC E4 12-24DC/1-10A
Condition: New
Usually ships within 7-14 days. Call for ship time$128.70
Sale Price
$107.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1115658 A four-channel electronic circuit breaker module is designed to safeguard DC power supplies with capacities of 12 and 24 volts, protecting them against excessive currents and short circuits. The nominal current setting can be easily adjusted between 1 and 10 amperes using a built-in LED button, allowing for precise control over the module's functionality. Additionally, this device can be installed on a DIN rail using CAPAROC current rails, providing a convenient mounting solution.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
1 Amp
Breaker Amperage Rating
10 Amp
Breaker Voltage Rating
24 VDC
Manufacturer
Phoenix Contact
Breaker Voltage Rating
12 VDC
Component
Electronic Circuit Breaker
Features
The benchmark that you can tailor with the individual combination of multi-channel protective modules
Easy operation for everyone through tool-free assembly, uninterrupted installation, and transparent operating state
Exceptionally easy design-in with four separately fused channels with the narrowest of space requirements of just 3 mm per channel
