Phoenix Contact 1115655 Electronic circuit breaker CAPAROC E2 12-24DC/1-4A
Normally In Stock
Code: 240878
CAPAROC E2 12-24DC/1-4A Phoenix Contact 1115655 Electronic circuit breaker - CAPAROC E2 12-24DC/1-4A
Condition: New
Usually ships within 7-14 days. Call for ship time$99.72
Sale Price
$83.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

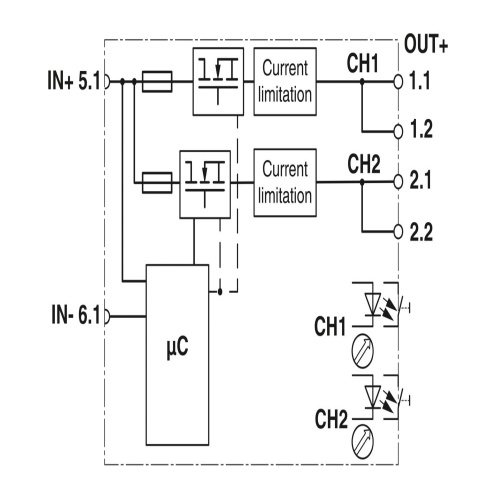

Phoenix Contact 1115655 A 2-channel electronic circuit breaker module is designed to safeguard DC loads of 12 and 24V, protecting them against overloads and short circuits while limiting current flow between 1A and 4A, with adjustable settings made possible by a step switch for DIN rail mounting via the CAPAROC current rails.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
1 Amp
Breaker Amperage Rating
4 Amp
Breaker Voltage Rating
24 VDC
Manufacturer
Phoenix Contact
Breaker Voltage Rating
12 VDC
Component
Electronic Circuit Breaker
Features
The benchmark that you can customize with convenient nominal current level setting on the module
Easy operation for everyone through tool-free assembly, uninterrupted installation, and transparent operating state
Exceptionally easy design-in allows the nominal current to be extended beyond the specified levels via PROFINET
