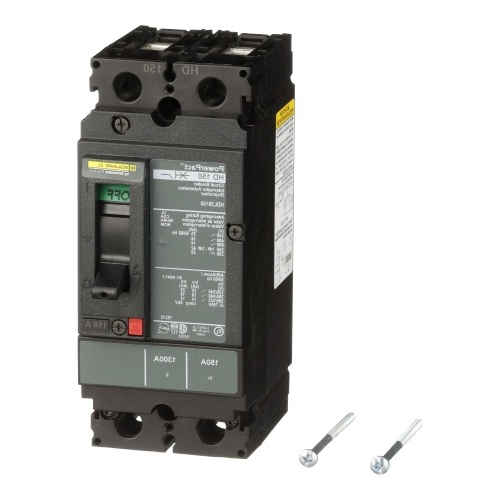

Schneider Electric HDL26150 Square D Breaker H Frame 150 Amp Two Pole
Normally In Stock
Code: 23789
Schneider Electric Square D HDL26150 H Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 150 Amp up to 600 VAC or 250 VDC, Two Pole, D Interrupt Rating.
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$2101.01
Sale Price
$1750.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric Square D HDL26150 H Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 150 Amp up to 600 VAC or 250 VDC, Two Pole, D Interrupt Rating.
Specifications
Poles (Molded Case Breaker)
Two Pole
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Frame Type (Molded Case Breaker)
H Frame
Amperage (Molded Case Breaker)
150 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
UL Listing (Molded Case Breaker)
UL 489
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
18 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
14 Ka 600 Volt
Phase
Single Phase
Number of Jaws
4
Features
Available in 2-3 pole design
Available from 15-150A at up to 600 Vac and 250 Vdc
Interrupting ratings (AIR) include D-18 kA, G-35 kA, J-65 kA and L-100 kA at 480 Vac and 20 kA at 250 Vdc
Available in standard (80%) or 100% rating
Common mounting holes, handle locations, and trim dimensions across the range allow design standardization using PowerPact H- and J-frame circuit breakers
Available with field-interchangeable trip units
Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications:
IEC Style Rotary Operating Handles
NEMA 9421 Door Mounted Rotary Operating Mechanism
NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated
Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy
Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields
Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions
2-3 pole automatic molded case switches available at 150A
UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked for global acceptance
