Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

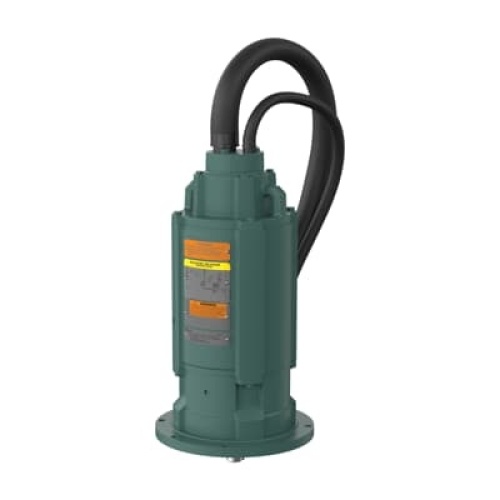

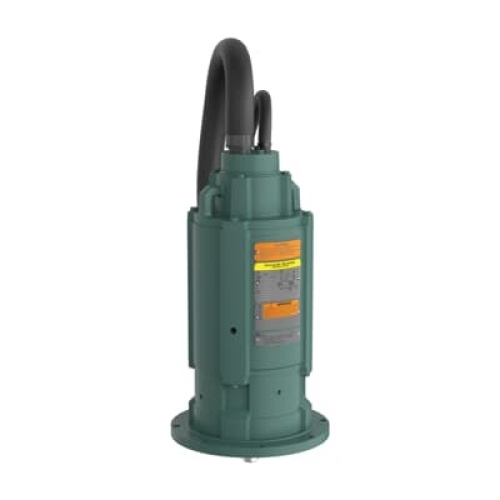

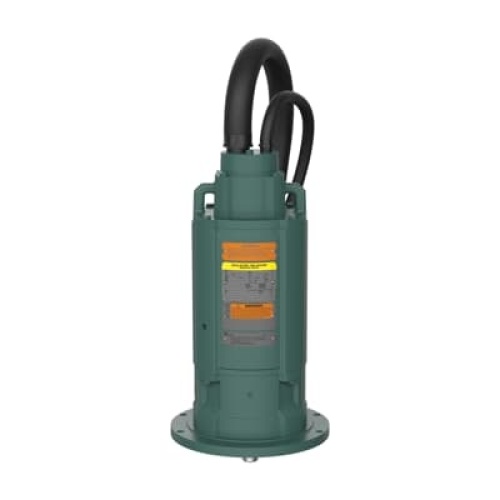

Baldor SUM70506 5HP, 1150RPM, 3PH, 60HZ, 180TY, TENV, FOOTLES
Normally In Stock
Code: 221042
Baldor SUM70506 3 230 V @ 60 HZ
460 V @ 60 HZ 5 @ 60 HZ Explosion Proof Non-Vented
Condition: New
CALL FOR LEAD TIME$10020.20
Sale Price
$8350.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor SUM70506 3 230 V @ 60 HZ
460 V @ 60 HZ 5 @ 60 HZ 16.0 A @ 230 V
8.00 A @ 460 V Iron Explosion Proof Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
5 HP
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor NEMA Design
NEMA Design G
Motor Enclosure Type
Explosion-Proof Non-Vented
Motor Frame Model
180TY
Motor Amperage (Full Load)
16 Amp
Motor Amperage (Full Load)
8 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
For continuous duty in water/sewage wet and dry pit applications. 25-ft cable for deep well operations (longer cable available)
UL Listed, CSA certified for CSA certified for Class 1 Division 1 Groups C & D with a T3C temperature code (T2A for inverter use)
Multiple sealing layers—including dual mechanical seals with an oil chamber, moisture probes, and secure epoxy-filled cable entries—ensure reliable operation even when fully submerged
Designed for durability, with a cast iron frame and end shield, 316 stainless steel hardware, a 416 stainless steel shaft, epoxy-sealed cable entry, and O-ring seals on all machined fits.
Inverter rated insulation system, Class 1 Division 1 Group D, T2A. Meets NEMA MG1, Part 31
Inpro/seals at drive end and opposite drive end
