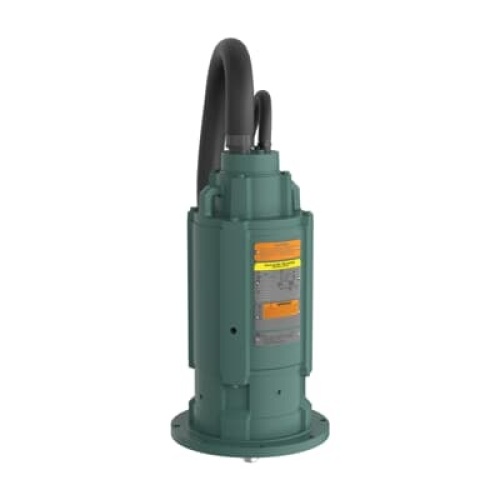

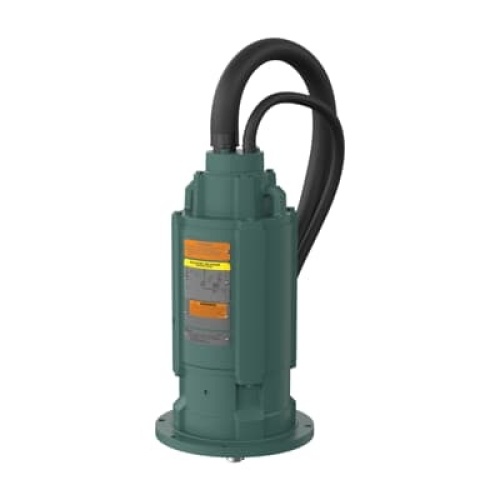

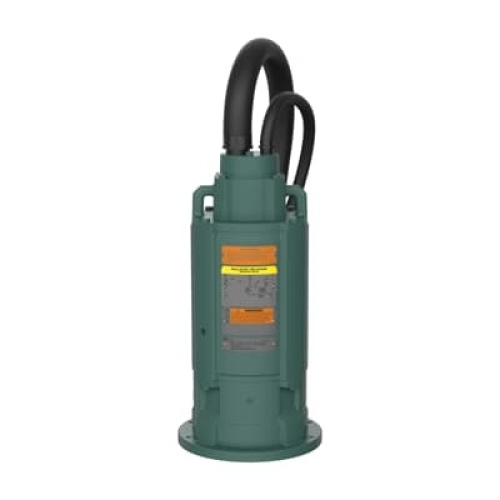

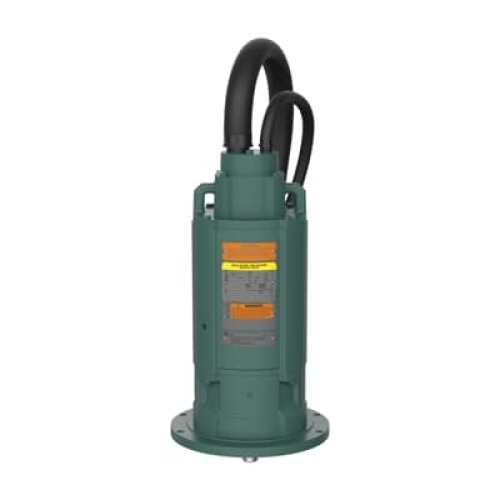

Baldor SUM70504-8 5HP, 1725RPM, 3PH, 60HZ, 180TY, Totally Enclosed Non-Vented, FOOTLES
Normally In Stock
Code: 221041
Baldor SUM70504-8 3 200 V @ 60 HZ
400 V @ 60 HZ 5 @ 60 HZ TEXP
Condition: New
CALL FOR LEAD TIME$7290.59
Sale Price
$6075.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor SUM70504-8 3 200 V @ 60 HZ
400 V @ 60 HZ 5 @ 60 HZ 16.1 A @ 200 V
8.05 A @ 400 V Iron TEXP
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
5 HP
Motor NEMA Design
NEMA Design H
Motor Voltage
200 Volt
Motor Voltage
400 Volt
Motor Frame Model
180TY
Motor Enclosure Type
Totally Enclosed Explosion-Proof
Motor Amperage (Full Load)
8 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Amperage (Full Load)
16.1 Amp
Features
For continuous duty in water/sewage wet and dry pit applications. 25-ft cable for deep well operations (longer cable available)
UL Listed, CSA certified for CSA certified for Class 1 Division 1 Groups C & D with a T3C temperature code (T2A for inverter use)
Multiple sealing layers—including dual mechanical seals with an oil chamber, moisture probes, and secure epoxy-filled cable entries—ensure reliable operation even when fully submerged
Designed for durability, with a cast iron frame and end shield, 316 stainless steel hardware, a 416 stainless steel shaft, epoxy-sealed cable entry, and O-ring seals on all machined fits.
Inverter rated insulation system, Class 1 Division 1 Group D, T2A. Meets NEMA MG1, Part 31
Inpro/seals at drive end and opposite drive end
