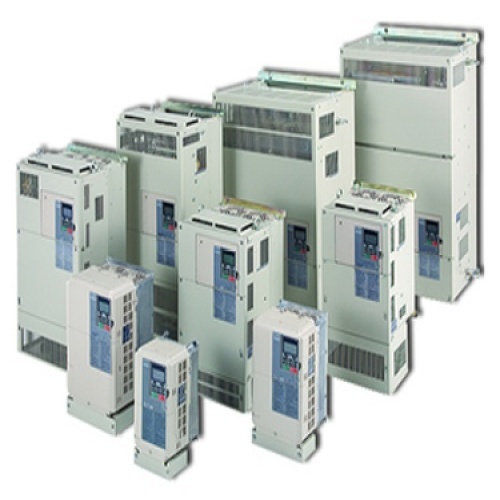

Yaskawa CIMR-AU2A0030FAA General Purpose A1000 Drive - 240 Volt, 30/25 Amp
Normally In Stock
Code: 21312
Yaskawa CIMR-AU2A0030FAA General Purpose A1000 Drive - 240 Volt, 30/25 Amp
Condition: New
Usually ships Same Day or Next Day$3369.77
Sale Price
$2808.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 1000HP. Enjoy network communications, feedback, and expandable I/O to control anything from simple fans and pumps to complex machines. For new installations or retrofits, the A1000 provides a single robust solution, regardless of your application.
Specifications
Manufacturer
Yaskawa
VFD Input Voltage
240 Volt Three Phase
VFD Output Voltage
240 Volt Three Phase
VFD Line
A1000
VFD Amperage Output
30/25 Amp
Features
Closed or open loop vector control for outstanding regulation, torque production, and position control capability.
Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature.
High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors.
Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand.
High Slip Braking reduces installation cost and the need for dynamic braking resistors
Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost.
DriveWizard computer software and Application Sets for easy configuration.
Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3).
Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers.
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives.
Removable terminal board with configuration storage provides convenience of configuration backup.
Made with RoHS compliant materials.
Integrated DC Reactor (standard on 30HP and larger) for input harmonic reduction.
Kinetic Energy Braking allows drive to remain in control during momentary power losses.
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Flange version provides NEMA 12 backside integrity when mounting with heatsink external.
Downloads
Information Sheet.pdfYaskawa CIMR-AU2A0030FAA 2D CAD Drawing.pdfYaskawa CIMR-AU2A0030FAA CSA Certification.pdfYaskawa CIMR-AU2A0030FAA Electrical Diagram.pdfYaskawa CIMR-AU2A0030FAA EU Certification.pdfYaskawa CIMR-AU2A0030FAA Quick Start Procedure.pdfYaskawa CIMR-AU2A0030FAA Spec Sheet.pdfYaskawa CIMR-AU2A0030FAA Technical Manual.pdfYaskawa CIMR-AU2A0030FAA UL Certification Directory.pdf
