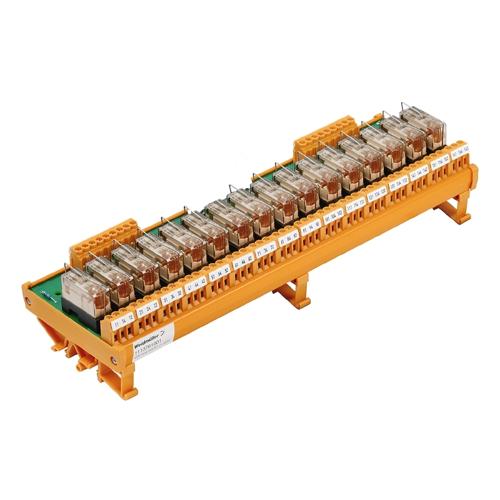

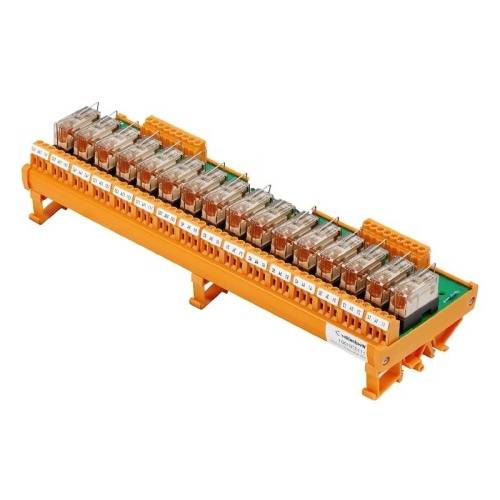

Weidmuller 1107861001 Interface Module w/ Relay - 16 x SPDT - 1 CO Contact
Normally In Stock
Code: 187893
Weidmuller 1107861001 - Screw Connection - 24 VDC - AgNi 90/10
Condition: New
Usually ships within 4 weeks. Call for ship time.$721.10
Sale Price
$600.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1107861001 - Discover the power of Weidmuller's Interfaces with Relays, designed to simplify connectivity between PLCs or other controllers. These interfaces feature relay bases (RSM) with common positive and negative connections. Available in groups of 4, 8, or 16 RCL relays (12.7 mm) or RSS relays (6.1 mm), they offer versatility in relay options. You can choose between 1 or 2 CO contacts with relays ranging from 16/8/6 A and voltages spanning from 5 to 230 V. The connection to the controller can be achieved through pluggable connectors or direct cabling with IEC 60603-13 connectors. With options for screw, tension clamp, or PUSH IN connections, these interfaces are adaptable to various installation requirements. They are also compatible with Weidmuller's solid-state relays. The relay range ensures galvanic isolation between input/output and adjacent contacts, providing a safe adaptation of voltages between controllers and field elements. Upgrade your connectivity with Weidmuller's Interfaces with Relays, delivering reliable and adaptable solutions.
Specifications
Manufacturer
Weidmuller
Component
Interface Module W/ Relay
Type Of Connection
Screw
Contact Material
Agni 90/10
Operating Voltage
24 VDC
Number Of Relays
16
Features
Relay bases (RSM) with common positive and negative to be connected to PLC or other type of controllers.
The interfaces are made up of groups of 4, 8 or 16 RCL relays (12.7 mm) or RSS (6.1 mm).
The connection to the controller can be set up using pluggable connectors or using direct cabling with IEC 60603-13 connectors.
Wide range of options: 1 or 2 CO contacts with 16/8/6 A relays Voltages from 5 to 230 V Screw, tension clamp or PUSH IN connection Compatible with Weidmüller's solid-state relays The range of relays provides galvanic isolation between input/output as well as between the adjacent contacts on the relays.
This enables the various voltages in the controllers and those required by the various field elements to be safely adapted.
