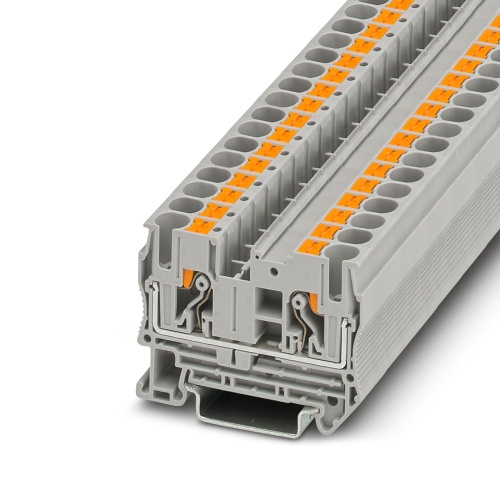

Phoenix Contact 3211813 Feed-through terminal block PT 6
Normally In Stock
Code: 18130
PT 6 Phoenix Contact 3211813 Phoenix Contact PT 6. Terminal Block 8.2mm Gray Single through Push-In Connection 1000V, 52A, 8-20AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$3.53
Sale Price
$2.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211813 A feed-through terminal block has a nominal voltage of 1000 V and can handle a nominal current of 41 A, accommodating two connections per position. The connections are made using a push-in method and have a rated cross-sectional area of 6 mm2, with actual cross-sections ranging from 0.5 mm2 to 10 mm2. The terminal block comes in two mounting types: NS 35/7,5 and NS 35/15, and has a standard color finish of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Tested for railway applications
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3211813 CAD data International.dxfPhoenix 3211813 CAD data International.pdfPhoenix 3211813 CAD data International.stpPhoenix 3211813 CAD Drawing.zipPhoenix 3211813 Certification English.pdfPhoenix 3211813 Certification International.pdfPhoenix 3211813 Manufacturers declaration International-2.pdfPhoenix 3211813 Manufacturers declaration International-3.pdfPhoenix 3211813 Manufacturers declaration International-4.pdfPhoenix 3211813 Manufacturers declaration International-5.pdfPhoenix 3211813 Manufacturers declaration International.pdfPhoenix 3211813 Product Information English.pdfPhoenix 3211813 Safety note English.pdfPhoenix 3211813 Spec Sheet.pdfPhoenix 3211813 Tender Text English.zipPhoenix 3211813 User instructions for the Ex Area International.pdf
