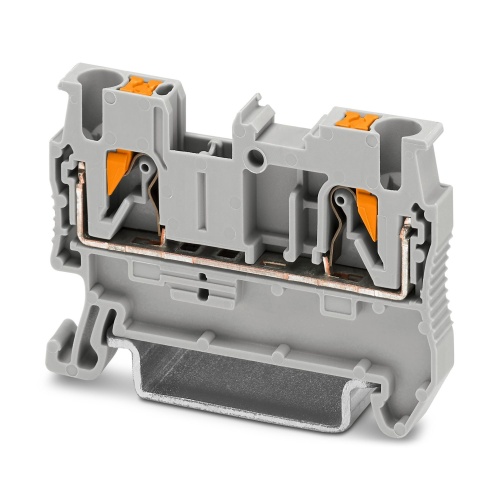

Phoenix Contact 3209510 Feed-through terminal block PT 2,5
Normally In Stock
Code: 18036
PT 2,5 Phoenix Contact 3209510 Phoenix Contact PT 2.5. Terminal Block 5.2mm Gray Single through Push-In Connection, 800V, 30A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$1.70
Sale Price
$1.42
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

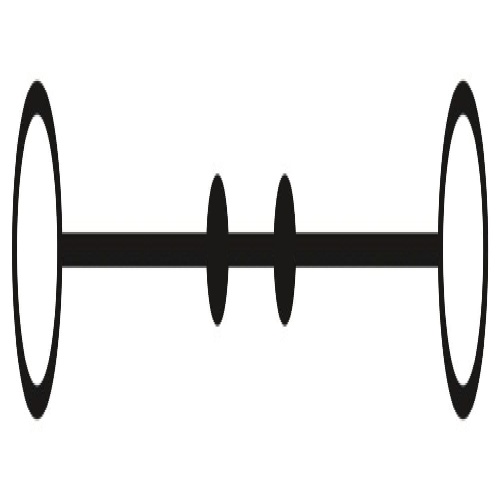

Phoenix Contact 3209510 The terminal block features a feed-through design with a nominal voltage of 800 V and a maximum current rating of 24 A. It has two connections, one position, and uses a push-in connection method for attachment. The cross-sectional area of the rated section is 2.5 mm2, while its range extends from 0.14 mm2 to 4 mm2. The terminal block is mounted using type NS 35/7,5 or NS 35/15, and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Tested for railway applications
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

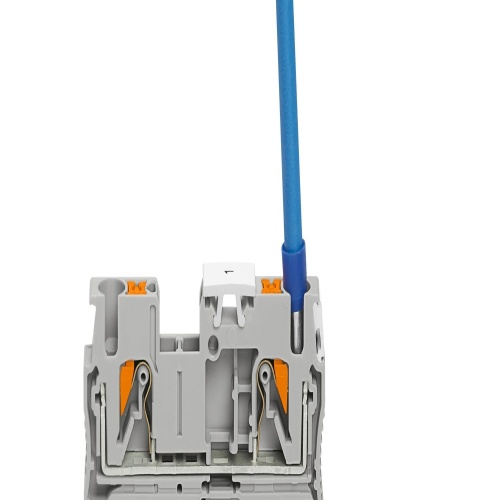

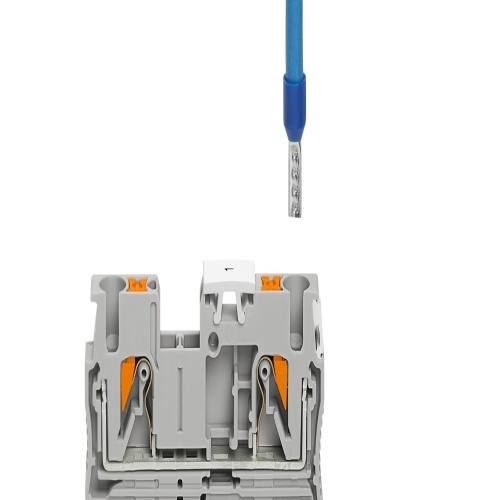

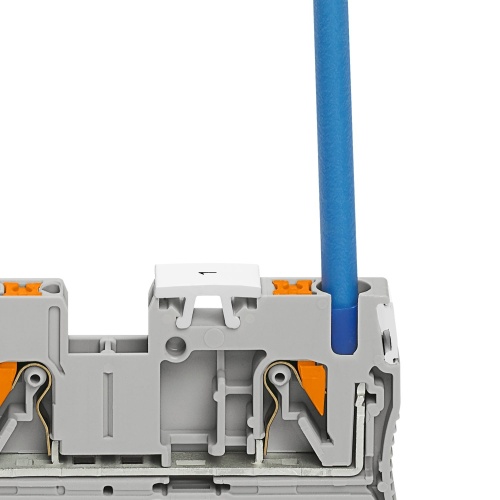

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3209510 CAD data International.dxfPhoenix 3209510 CAD data International.pdfPhoenix 3209510 CAD data International.stpPhoenix 3209510 CAD Drawing.zipPhoenix 3209510 Certification English-2.pdfPhoenix 3209510 Certification English.pdfPhoenix 3209510 Instructions for the Ex Area.pdfPhoenix 3209510 Manufacturers declaration International-2.pdfPhoenix 3209510 Manufacturers declaration International-3.pdfPhoenix 3209510 Manufacturers declaration International-4.pdfPhoenix 3209510 Manufacturers declaration International-5.pdfPhoenix 3209510 Manufacturers declaration International-6.pdfPhoenix 3209510 Manufacturers declaration International.pdfPhoenix 3209510 Product Information English.pdfPhoenix 3209510 Safety note English.pdfPhoenix 3209510 Spec Sheet.pdfPhoenix 3209510 Tender Text English.zipPhoenix 3209510 User instructions for the Ex Area International.pdf
