Code: 178857

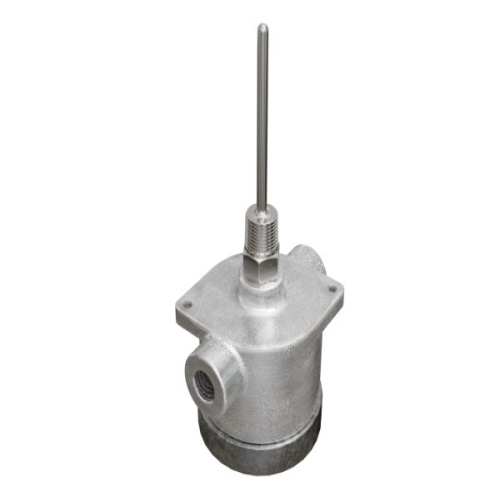

ACI 147138 A/TTM1K-INW-12"-4-EXPL Immersion RTD
Normally In Stock
ACI 147138 Transmitter w/ 1,000 Ohm RTD (NIST Cert), Hazardous, Immersion, No Well, 12", 4-20mA Output'
Condition: New
Backordered with 10-12 week lead time$601.56
Sale Price
$501.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
ACI Hazardous Area Sensors are a cost effective solution for all of your hazardous temperature measurement needs. They are accurate, durable, reliable and can be ordered in room, duct or immersion configurations. This sensor series in available in with various sensor types. Please see corresponding cut sheets for individual sensor specifications. The ordering chart on the next page shows a sampling of sensing elements that are available. (Contact ACI for additional sensor types) They are offered with an Explosion Proof Head, which includes an O-ring, Gasket, Ground Screw, (2) 1/2” NPT female openings, and mounting holes in the base of the housing for ease of installation. The Condulet Enclosure has a UL Listing of 886 and meets the following: CL. I, DIV. 1 & 2, GR. A, B, C, D; CL. II, DIV. 1, GR. E, F, G; CL.II, DIV. 2, GR. F,G; CL. III; NEMA 3,4, 7ABCD, 9EFG. All immersion sensors include a 304 Series stainless steel thermowell. For applications in which 304 S.S does not meet your corrosion requirements, 316 Series machined stainless steel and Monel thermowells are available and must be ordered separately. (Please note: This product should be installed by a trained professional with knowledge of local codes and regulations). ACI hazardous area temperature sensors are designed for Class I,Div,1 &2, Groups A,B,C, & D requirements. Specific applications include: combustible environments, heavy duty/industrial areas.
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Mounting
Immersion
Features
The ACI Hazardous Transmitter Series features an encapsulated temperature transmitter mounted in an industrial connection head style enclosure
The epoxy coating provides excellent protection of the transmitter from moisture and corrosion when used in harsh environments and improved accuracy due to the thermal conductivity of the epoxy keeping the components at a more stable operating temperature
The sensors are manufactured using ACI’s double encapsulation process to eliminate the effects of moisture upon the sensors and to increase response times
For higher accuracies, ACI recommends the use of the A/TTM Series transmitters which includes a secondary calibration process that removes most of the sensor error over the calibrated temperature span of your transmitter and includes a 3 or 5 Point NIST Certificate
The unit includes an O-Ring seal, ground screw, and weather resistant finish
The “INW” Immersion sensor without thermowell can be used with an existing thermowell or paired with one of our machined thermowells when higher flow rates, temperatures, pressure rating or corrosion resistance is required
This product should be installed by a trained professional with knowledge of local codes and regulations.
