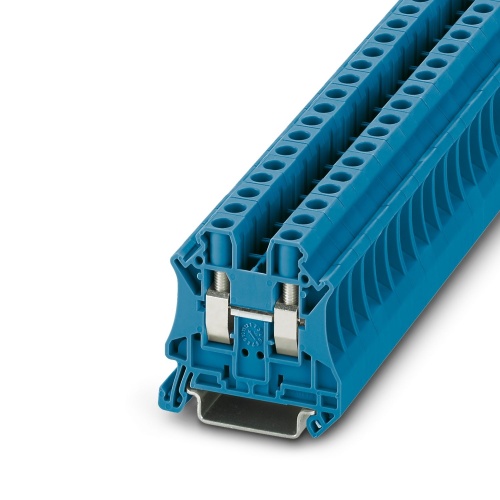

Phoenix Contact 3044144 Feed-through terminal block UT 6 BU
Normally In Stock
Code: 1770
UT 6 BU Phoenix Contact 3044144 Phoenix Contact UT 6 BU, Terminal Block (Sold in packs of 50) 8.2mm Blue Single through screw connection, 1000V, 57A, 8-24AWG
Condition: New
Usually Ships Same day or Next Day$1.64
Sale Price
$1.37
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044144 A feed-through terminal block features a nominal voltage of 1000 V and a maximum current capacity of 41 A, accommodating two connections via screw attachment. The rated cross-sectional area ranges from 0.2 mm² to 10 mm², while the mounting type is NS 35/7.5 or NS 35/15 with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
Tested for railway applications
Downloads
Phoenix 3044144 Application Note International.pdfPhoenix 3044144 CAD data International.dxfPhoenix 3044144 CAD data International.pdfPhoenix 3044144 CAD data International.stpPhoenix 3044144 CAD Drawing.zipPhoenix 3044144 Certification English-2.pdfPhoenix 3044144 Certification English.pdfPhoenix 3044144 Manufacturers declaration English.pdfPhoenix 3044144 Manufacturers declaration International-2.pdfPhoenix 3044144 Manufacturers declaration International-3.pdfPhoenix 3044144 Manufacturers declaration International.pdfPhoenix 3044144 Safety note English.pdfPhoenix 3044144 Spec Sheet.pdfPhoenix 3044144 Tender Text English.zipPhoenix 3044144 User instructions for the Ex Area International.pdfPhoenix 3044144 User Manual.pdf
