Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 17675

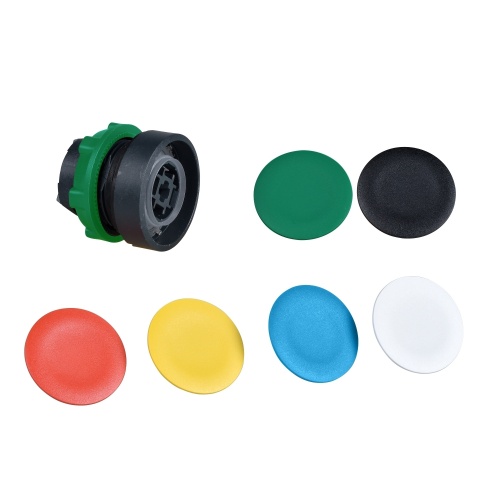

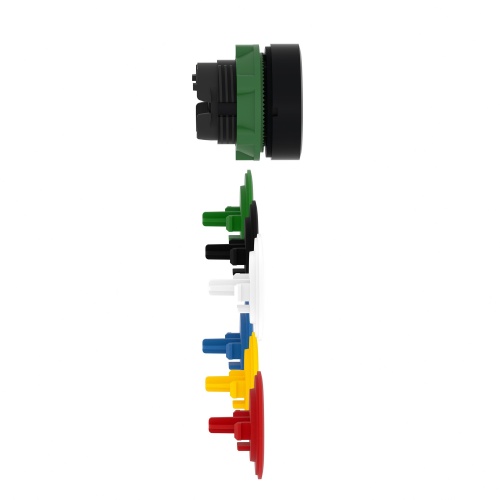

Schneider Electric ZB5AA9 Push Button Head 22mm Six Color Caps Flush
Normally In Stock
Schneider Electric ZB5AA9 Push Button Switch 22mm, Flushmount Button, Round with 6 color caps Blue, Yellow, Red, Green, Black, and White, Non-illuminated, Plastic, Momentary Operation Type. Contact Blocks and Mounting Collar sold Separately. Square D ZB5AA9 or Telemecanique ZB5A
Condition: New
Usually ships Same Day or Next Day$16.39
Sale Price
$13.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric ZB5AA9 Push Button Switch 22mm, Flushmount Button, Round with 6 color caps Blue, Yellow, Red, Green, Black, and White, Non-illuminated, Plastic, Momentary Operation Type, Body Only, Contact Block Sold Separately, with maximum of 9 contact blocks, UL approved, Nema 1,2,3,4,4x,13, IP66 approved.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Contact Configuration
Without Contact Block
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Color
Black
(Switching-Indication) Color
Blue
(Switching-Indication) Color
White
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Color
Green
(Switching-Indication) Color
Red
(Switching-Indication) Color
Yellow
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 66
Sub Component
Head
Manufacturer
Schneider Electric
Component
Accessories
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
