Code: 174506
ACI 119530 A/1K-2W-D-4"-GD 2 Wire,1K Ohm Duct RTD
Normally In Stock
ACI 119530 1,000 Ohm (Two Wires) RTD, Duct, 4", Galvanized Enclosure
Condition: New
Usually ships Same Day or Next Day$36.72
Sale Price
$30.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
1000 Ohms @ 32 degrees F (2 wire, platinum RTD sensing element) with a 0.00385 temperature coefficient. The galvanized metal duct mount configuration has a mounting flange for quick installation and a foam pad to dampen vibrations. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration.
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Mounting
Duct
(Instrument-Sensor) Composition
Platinum
(Instrument-Sensor) Type
2 Wire-1K Ohm
Features
The ACI Platinum Duct Series features a stainless steel probe with Etched Teon colored leadwires to dierentiate the dierent sensor types
The three-wire “-3W” option should be orderedwhen using with a 3-Wire temperature transmitter or sensor conguration on your buildingmanagement system or PLC (Programmable Logic Controller)
The purpose of the 3rd wire is tocompensate for external lead wire resistance that will aect the accuracy of your sensor output.ACI recommends the use of an 18 AWG lead wires to reduce the external lead wire resistancewhen using a Platinum RTD
The sensors are manufactured using ACI’s proven doubleencapsulation process to eliminate the eects of moisture on the sensors and to increaseresponse times using our high quality, thermally conductive epoxy

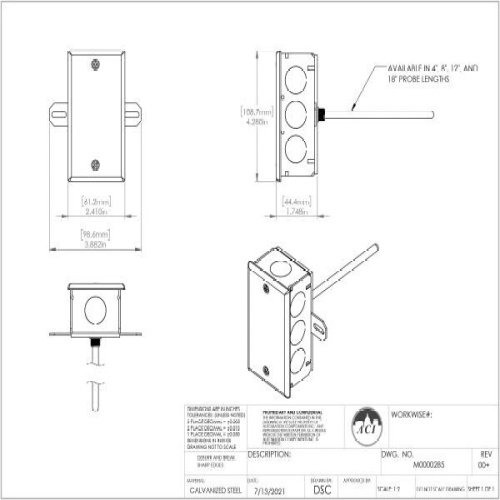

The duct style sensor is asingle point sensor designed to be used in smaller duct applications and includes an insulation pad for sealing the duct and dampening vibration.The sensor length should be determined by the width or diameter of your duct, such that the tip of the probe is in the approximate center of theduct
Standard enclosure options include the “-GD” Galvanized or “-PB” plastic enclosure with hinged cover
On larger ducts, our Rigid or BendableCopper Averaging sensor may oer better coverage based upon the size of your duct system and sensor location
Optional NEMA/IP rated weatherproof enclosures and NIST Certicates are available as referenced in the ordering grid.
