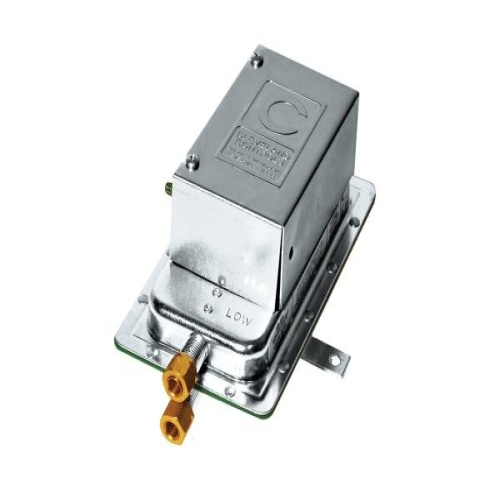

ACI 101791 AFS-460 Switch Pressure
Normally In Stock
Code: 174050
ACI 101791 Differential Pressure Switch, 0.4 to 12.0 inWC, SPDT N/C, Manual Reset, Compression Fitting
Condition: New
Usually ships Same Day or Next Day$108.29
Sale Price
$90.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Note (2/22/21): Due to component shortages, this product is experiencing longer than normal lead times. Please contact ACI for further information.
Specifications
Manufacturer
ACI
Component
Pressure
(Instrument-Sensor) Type
Switch
Features
The AFS Series Differential Pressure Switches are general purpose proving switches designed for both HVAC and Energy Management applications
These pressure switches can be used to sense positive, negative, or differential air pressures when used in conjunction with an A/SPT or A/VPT Series sampling tube
The plated housing contains a diaphragm, calibration spring and single snap-acting contact closure with either a manual or automatic reset switch depending on the model
The enclosure cover contains a ½” conduit knockout and guards against accidental contact with the live switch terminal screws as well as the set point adjusting screw.
