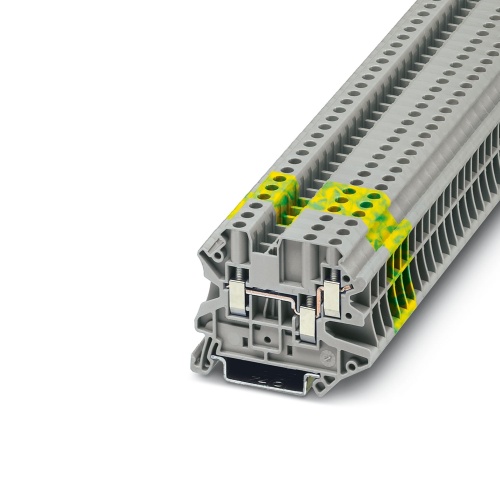

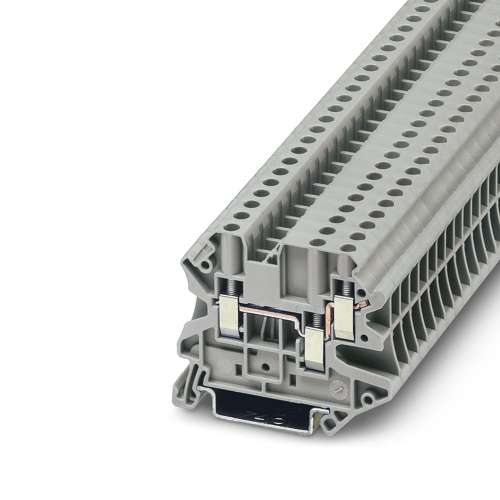

Phoenix Contact 3044364 Feed-through terminal block UT 4-TWIN
Normally In Stock
Code: 1691
UT 4-TWIN Phoenix Contact 3044364 Phoenix Contact UT 4-TWIN. Terminal Block 6.2mm Gray 3 Conductor Single through screw connection, up to 500V, 41A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.20
Sale Price
$1.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044364 A terminal block with specific specifications is used, featuring a feed-through design with a nominal voltage of 500 V and a nominal current capacity of 32 A. The terminal block has three connection points that are secured via screw connections, and the rated cross-section is 4 mm², while the actual cross-sectional area can vary between 0.14 mm² to 6 mm². Additionally, the mounting type includes options NS 35/7.5 and NS 35/15, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
User-friendly implementation of all potential branching tasks
Tested for railway applications
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
Downloads
Phoenix 3044364 User Manual.pdfPhoenix 3044364 User instructions for the Ex Area International.pdfPhoenix 3044364 Tender Text English.zipPhoenix 3044364 Spec Sheet.pdfPhoenix 3044364 Safety note English.pdfPhoenix 3044364 Manufacturers declaration International.pdfPhoenix 3044364 Manufacturers declaration International-3.pdfPhoenix 3044364 Manufacturers declaration International-2.pdfPhoenix 3044364 Manufacturers declaration English.pdfPhoenix 3044364 Certification International.pdfPhoenix 3044364 Certification English.pdfPhoenix 3044364 CAD Drawing.zipPhoenix 3044364 CAD data International.stpPhoenix 3044364 CAD data International.pdfPhoenix 3044364 CAD data International.dxf
