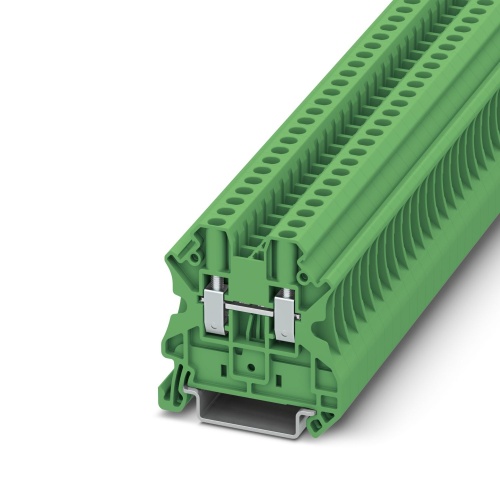

Phoenix Contact 3045156 Feed-through terminal block UT 4 GN
Normally In Stock
Code: 1674
UT 4 GN Phoenix Contact 3045156 Phoenix Contact UT 4 GN. Terminal Block (Sold in packs of 50) 6.2mm Green Single through screw connection, 1000V, 41A, 10-26AWG
Condition: New
Usually Ships Same day or Next Day$1.32
Sale Price
$1.10
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045156 The feed-through terminal block features a nominal voltage of 1000 V and a nominal current capacity of 32 A, accommodating up to two connections via screw connection. The rated cross-section is specified at 4 mm², with a tolerance range of 0.14 mm²-6 mm², and it can be mounted using the NS 35/7,5 or NS 35/15 type, with an additional color option in green.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Green
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3045156 Application Note International.pdfPhoenix 3045156 CAD data International.dxfPhoenix 3045156 CAD data International.pdfPhoenix 3045156 CAD data International.stpPhoenix 3045156 CAD Drawing.zipPhoenix 3045156 Certification English-2.pdfPhoenix 3045156 Certification English.pdfPhoenix 3045156 Manufacturers declaration English.pdfPhoenix 3045156 Manufacturers declaration International-2.pdfPhoenix 3045156 Manufacturers declaration International.pdfPhoenix 3045156 Safety note English.pdfPhoenix 3045156 Spec Sheet.pdfPhoenix 3045156 Tender Text English.zipPhoenix 3045156 User instructions for the Ex Area International.pdfPhoenix 3045156 User Manual.pdf
