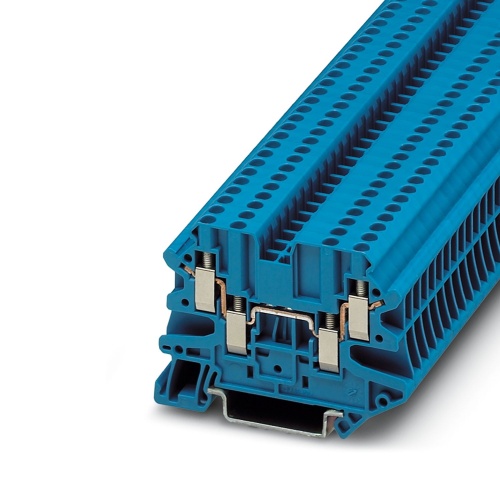

Phoenix Contact 3044555 Feed-through terminal block UT 2,5-QUATTRO BU
Normally In Stock
Code: 1638
UT 2,5-QUATTRO BU Phoenix Contact 3044555 Phoenix Contact UT 2.5-QUATTRO UT 2.5-QUATTRO BU. Terminal Block 5.2mm Blue 4 Conductor Single through screw connection, up to 500V, 30A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.44
Sale Price
$2.03
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044555 The feed-through terminal block has a nominal voltage of 500 V and a maximum current capacity of 24 A, accommodating four connections via a screw connection method. The rated cross-sectional area is 2.5 mm2, with a usable range spanning from 0.14 to 4 mm2. These units are designed for mounting on NS35/7.5 and NS35/15 bases, available in blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Tested for railway applications
These versions can be used as compact potential distributors
Downloads
Phoenix 3044555 User Manual.pdfPhoenix 3044555 User instructions for the Ex Area International.pdfPhoenix 3044555 Tender Text English.zipPhoenix 3044555 Spec Sheet.pdfPhoenix 3044555 Safety note English.pdfPhoenix 3044555 Manufacturers declaration International.pdfPhoenix 3044555 Manufacturers declaration International-2.pdfPhoenix 3044555 Manufacturers declaration English.pdfPhoenix 3044555 Certification International.pdfPhoenix 3044555 Certification English.pdfPhoenix 3044555 CAD Drawing.zipPhoenix 3044555 CAD data International.stpPhoenix 3044555 CAD data International.pdfPhoenix 3044555 CAD data International.dxf
