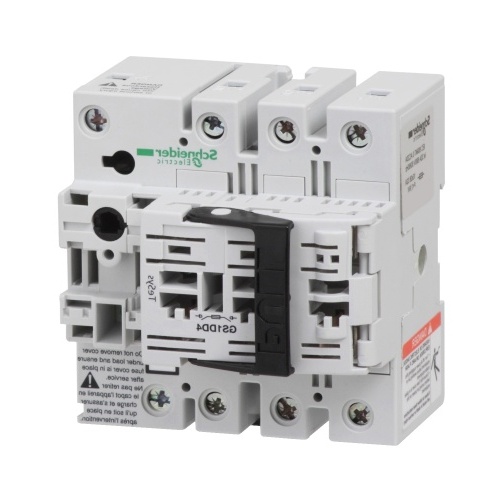

Schneider Electric GS1DD4 TeSys GS - switch-disconnector-fuse - 3 P + N - 32 A - NFC 10 x 38 mm
Normally In Stock
Code: 113459
Schneider GS1DD4 3P + Nc 20 A 440 V 2 poles in series per phase DC-23A, 20 A 440 V 2 poles in series per phase DC-23B, 32 A 400 V AC-23A, 32 A 400 V AC-23B, 32 A 500 V AC-23A, 32 A 500 V AC-23B, 32 A 690 V AC-23A, 32 A 690 V AC-23B 4 NO 10 x 38 mm CE Switch-disconnector-fuse 32 A
Condition: New
CALL FOR LEAD TIME$971.69
Sale Price
$809.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
TeSys GS - switch-disconnector-fuse - 3 P + N - 32 A - NFC 10 x 38 mm
Specifications
Manufacturer
Schneider Electric
Component
Switch-Disconnector-Fuse
Features
TeSys GS fuse switch-disconnector, 4 poles (3P+N), 32A/800V, to be used with NFC cylindrical fuse links size 10x38mm up to 32A, for motor applications up to 15kW@400V AC-23
To be equipped with a direct operating handle GS1AH103 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available)
It provides screw terminals with 4P terminal shrouds, high short circuit current rating 100kA@400V
Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately)
Type aM and gG 10x38mm cylindrical fuse links without strickers DF2CA, DF2CN are available (to be ordered separately)
Multi standards certified (IEC, Marine).
