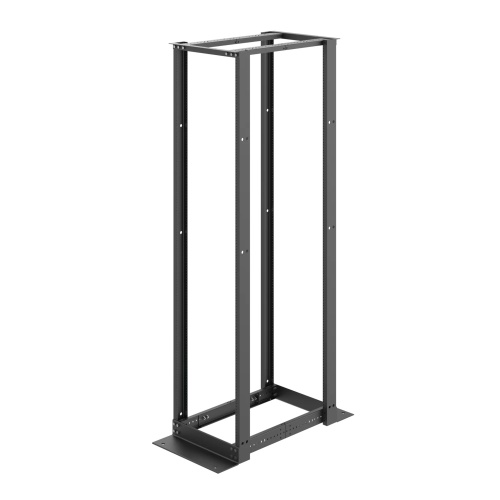

nVent Hoffman E4DR19FM45U 4-Post Open Frame Rack
Normally In Stock
Code: 11072
nVent Hoffman E4DR19FM45U 84.0"x21.0" 4-Post Open Frame Rack
Condition: New
Usually ships Same Day or Next Day$1489.96
Sale Price
$1241.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman E4DR19FM45U 84.0"x21.0" 4-Post Open Frame Rack
Specifications
Rack Spacing
19"
Component
Frame Rack
Sub Component
2-Post Open Frame Rack
Rack-Frame Color
Black
Rack-Frame Hole Type
Tapped
Rack-Frame Rack Units
45
Rack-Frame Width
21.0"
Rack-Frame Height
84.0"
Rack-Frame Depth
15"
Manufacturer
Hoffman
Features
RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
Compatible with 19-in. rack accessories
Available with nominal frame height of 6, 7 and 8 feet
Floor mounting holes predrilled at .750-inch diameter
EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
Shipped unassembled for convenient transport to job site
Includes complete assembly instructions
Can be ganged with both 2- and 4-Post Open Frame racks
For square hole model, order screws and cage nuts separately
Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
Uprights on the square-hole model are made from 12 gauge steel
Top and bottom angles made of extruded aluminum (6063-T6 alloy)
Downloads
Hoffman E4DR19FM45U 2D DXF CAD.zipHoffman E4DR19FM45U 3D STEP CAD.zipHoffman E4DR19FM45U CAD Drawing.zipHoffman E4DR19FM45U Declaration of Compliance.pdfHoffman E4DR19FM45U Dimension Drawing.gifHoffman E4DR19FM45U EU Certification.pdfHoffman E4DR19FM45U Instruction Manual.pdfHoffman E4DR19FM45U Spec Sheet.pdfHoffman E4DR19FM45U UL Certification.pdfHoffman E4DR19FM45U User Manual.pdf
