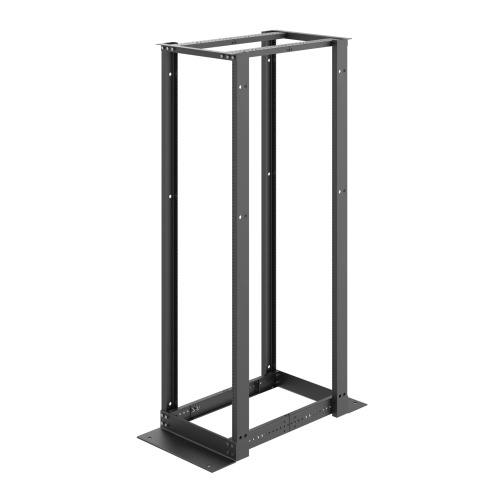

nVent Hoffman E4DR19FM38U 4-Post Open Frame Rack
Normally In Stock
Code: 11071
nVent Hoffman E4DR19FM38U 72.0"x21.0" 4-Post Open Frame Rack
Condition: New
Usually ships Same Day or Next Day$1355.80
Sale Price
$1129.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman E4DR19FM38U 72.0"x21.0" 4-Post Open Frame Rack
Specifications
Rack Spacing
19"
Component
Frame Rack
Sub Component
2-Post Open Frame Rack
Rack-Frame Color
Black
Rack-Frame Hole Type
Tapped
Rack-Frame Rack Units
38
Rack-Frame Width
21.0"
Rack-Frame Height
72.0"
Rack-Frame Depth
15"
Manufacturer
Hoffman
Features
RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
Compatible with 19-in. rack accessories
Available with nominal frame height of 6, 7 and 8 feet
Floor mounting holes predrilled at .750-inch diameter
EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
Shipped unassembled for convenient transport to job site
Includes complete assembly instructions
Can be ganged with both 2- and 4-Post Open Frame racks
For square hole model, order screws and cage nuts separately
Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
Uprights on the square-hole model are made from 12 gauge steel
Top and bottom angles made of extruded aluminum (6063-T6 alloy)
