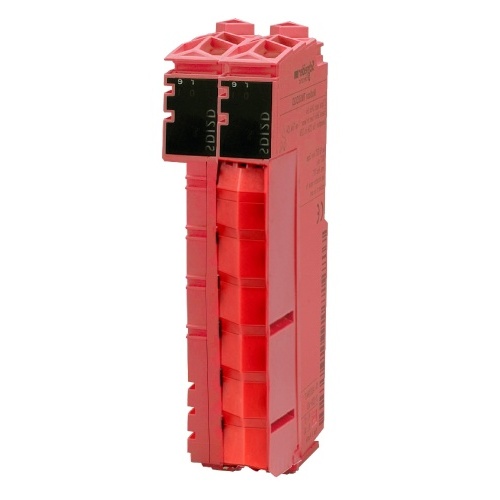

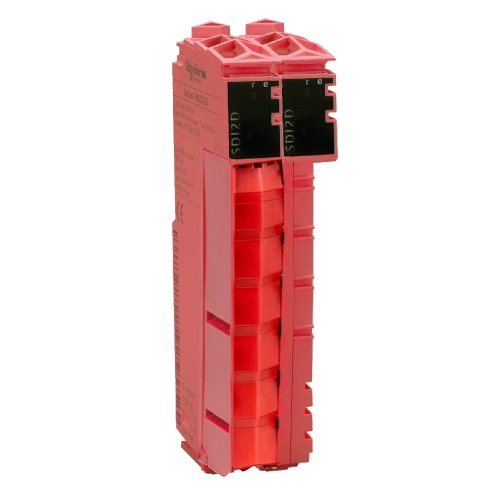

Schneider Electric TM5SDM4DTRFS Safety digital I/O module - 2I - 2O - 24V DC - 6A - relay n/o
Normally In Stock
Code: 110699
Schneider TM172ASCTB42 42 Terminal block Screw terminal block Logic controller M172 performance Base controller Removable terminal block screw connector Green Modicon M171/M172 22537 - M171 / M172 HVAC CONTROLLERS PC12 00785901462101 1 0.15 lb(US (0.07 kg Yes IT PCE 1.18 in (3 cm (MUST BUY IN PACKS OF 5)
Condition: New
CALL FOR LEAD TIME$1223.56
Sale Price
$1019.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Safety digital I/O module - 2I - 2O - 24V DC - 6A - relay n/o
Specifications
(Modicon PLC) Digital Output Type
Relay
(Modicon PLC) Digital Outputs
2
(Modicon PLC) Digital Inputs
2
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
I/O Module
Features
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System
This Safety discrete IO module provides 2 inputs, 24V DC, sink and 2 NO relay outputs
There is an isolation between channel and bus at 500V AC
This safety module, associated with TM5CSLC safety logic controller provides distributed safety solutions on Sercos bus up to SIL 3, Cat
4, PL e, SIL CL3
It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling
It is furnished with 2 wires for electrical connection
Its housing colour is red
It weighs 0.025kg
It measure 75mm deep, 25mm wide, 99mm high
The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems
This product is certified by GOST-R, C-Tick, cULus and CSA
It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards
It is compatible with Modicon TM5CSLC safety logic controller
It is installed by mounting on a 35mm DIN rail
This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers
Flexible and scalable, designed for complex machines.
