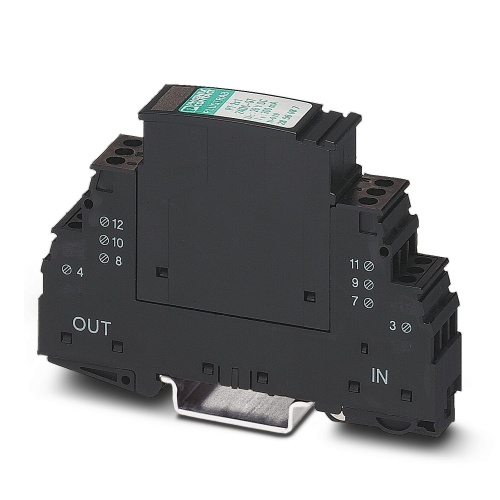

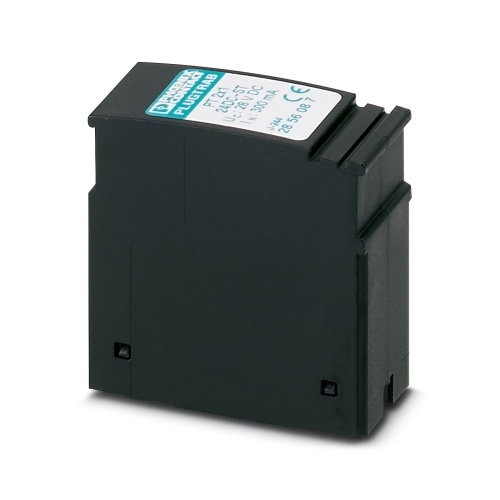

Phoenix Contact 2856087 Surge protection plug PT 2X1-24DC-ST
Normally In Stock
Code: 10536
PT 2X1-24DC-ST Phoenix Contact Transient Surge Suppressor PT 2X1-24DC-ST Surge protection plug for the base element, coarse and fine protection for two signal wires with common reference potential.
Condition: New
Usually ships Same Day or Next Day$242.89
Sale Price
$202.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

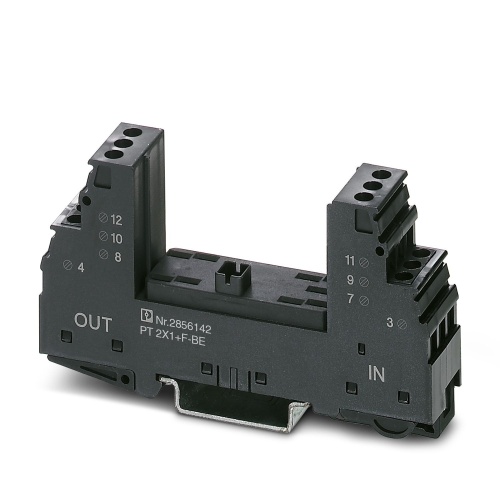

Related Products
Description

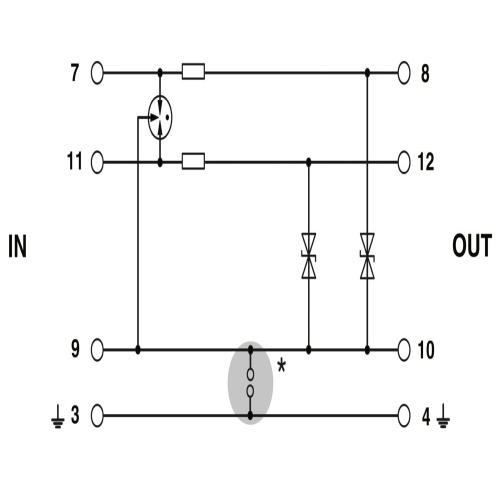

Phoenix Contact 2856087 A surge protection plug is designed to protect the base element from power surges and spikes, offering both coarse and fine protection for two signal wires that share a common reference potential, as well as common mode voltage protection to ground. The design operates at a fixed 24V DC voltage level.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
55.2 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2856087 CAD data International.dxfPhoenix 2856087 CAD data International.pdfPhoenix 2856087 CAD data International.stpPhoenix 2856087 CAD Drawing.zipPhoenix 2856087 EPLAN Macro International.z13Phoenix 2856087 EPLAN Macro International.zipPhoenix 2856087 Flyer English.pdfPhoenix 2856087 Manufacturers declaration English.pdfPhoenix 2856087 Manufacturers declaration International.pdfPhoenix 2856087 Package Slip International.pdfPhoenix 2856087 Product Information English.pdfPhoenix 2856087 Software International.zipPhoenix 2856087 Spec Sheet.pdfPhoenix 2856087 Surge Protection English.pdfPhoenix 2856087 Tender Text English.zipPhoenix 2856087 User Manual.pdf
