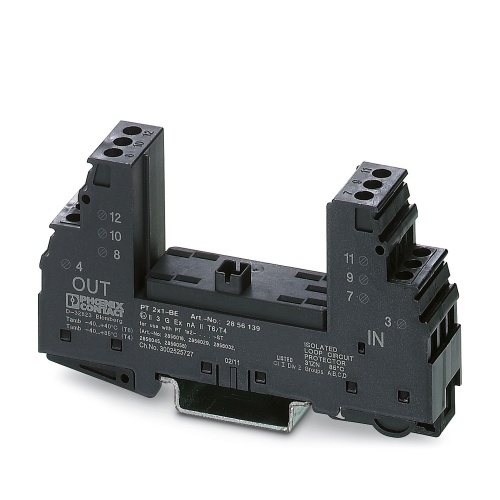

Phoenix Contact 2856139 Surge protection base-element PT 2X1-BE
Normally In Stock
Code: 10564

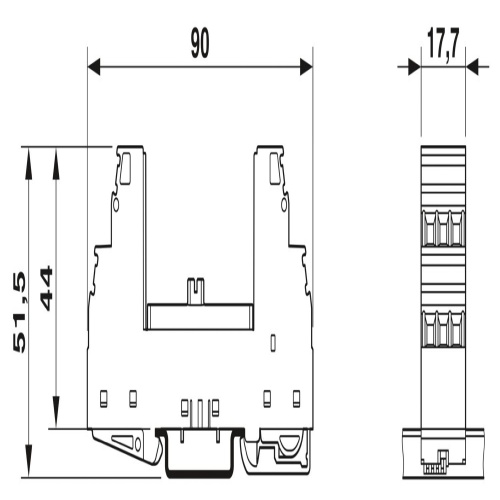

PT 2X1-BE Phoenix Contact PT 2X1-BE Base element for protective plug PT with protective circuit for 2 conductors of signal circuits grounded on one side. Mounting on NS 35/7.5 und NS 35/15, housing width: 17.5 mm.
Condition: New
Usually ships Same Day or Next Day$74.40
Sale Price
$62.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

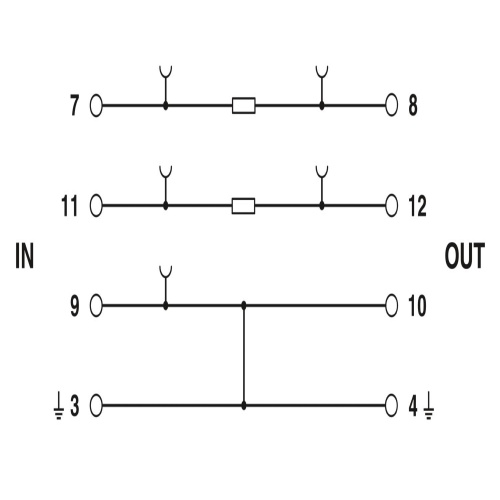

Phoenix Contact 2856139 The base element is a protective plug with a built-in protective circuit, designed for use with 2-conductor signal circuits that are grounded on one side. It is compatible with mounting systems NS 35/7.5 und NS 35/15 and has a housing width of 17.5 mm.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
75 Volt
Nominal Discharge Current
15 Ka
Sub Component
Base Element
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2856139 CAD data International.dxfPhoenix 2856139 CAD data International.pdfPhoenix 2856139 CAD data International.stpPhoenix 2856139 CAD Drawing.zipPhoenix 2856139 Flyer English.pdfPhoenix 2856139 Manufacturer's declaration International.pdfPhoenix 2856139 Manufacturers declaration English.pdfPhoenix 2856139 Manufacturers declaration International.pdfPhoenix 2856139 Package Slip International.pdfPhoenix 2856139 Product Information English.pdfPhoenix 2856139 Software International.zipPhoenix 2856139 Spec Sheet.pdfPhoenix 2856139 Surge Protection English.pdfPhoenix 2856139 Tender Text English.zipPhoenix 2856139 User Manual.pdf
