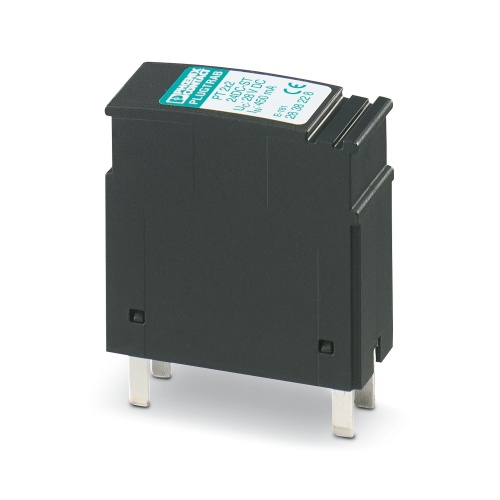

Phoenix Contact 2838228 Surge protection plug PT 2X2-24DC-ST
Normally In Stock
Code: 10480

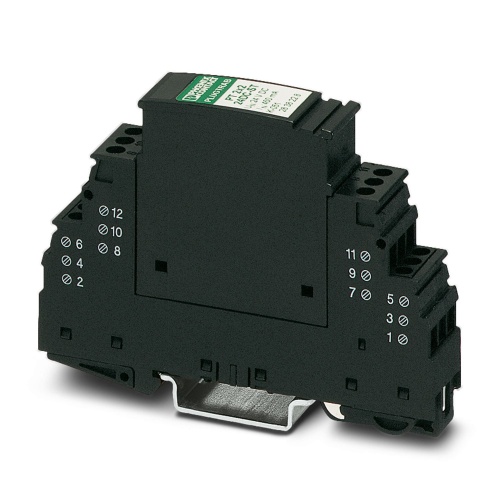

PT 2X2-24DC-ST Phoenix Contact Transient Surge Suppressor PT2x2-24DC-ST Plugtrab plug (Base sold Separately use Phoenix 2920024) for 2 floating signals. Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground
Condition: New
Usually ships Same Day or Next Day$428.89
Sale Price
$357.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

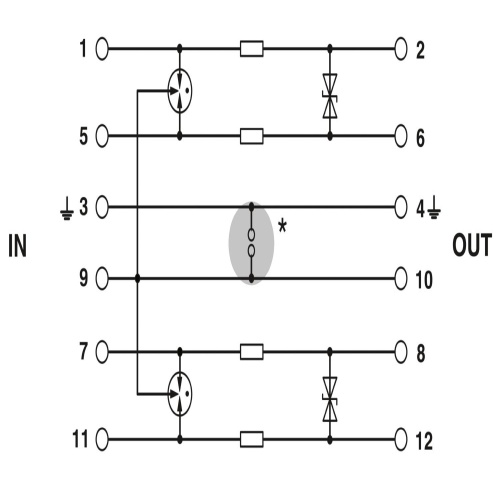

Phoenix Contact 2838228 A protective connector designed for use in two 2-wire floating signal circuits is provided with a built-in protective circuit, suitable for 24V DC operation and compatible with the Hart communication protocol.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
119 Amp
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
40 Volt
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2838228 CAD data International.dxfPhoenix 2838228 CAD data International.pdfPhoenix 2838228 CAD data International.stpPhoenix 2838228 CAD Drawing.zipPhoenix 2838228 EPLAN Macro International.z13Phoenix 2838228 EPLAN Macro International.zipPhoenix 2838228 Flyer English.pdfPhoenix 2838228 Manufacturers declaration English.pdfPhoenix 2838228 Manufacturers declaration International.pdfPhoenix 2838228 Package Slip International.pdfPhoenix 2838228 Product Information English.pdfPhoenix 2838228 Software International.zipPhoenix 2838228 Spec Sheet.pdfPhoenix 2838228 Surge Protection English.pdfPhoenix 2838228 Tender Text English.zipPhoenix 2838228 User Manual.pdf
