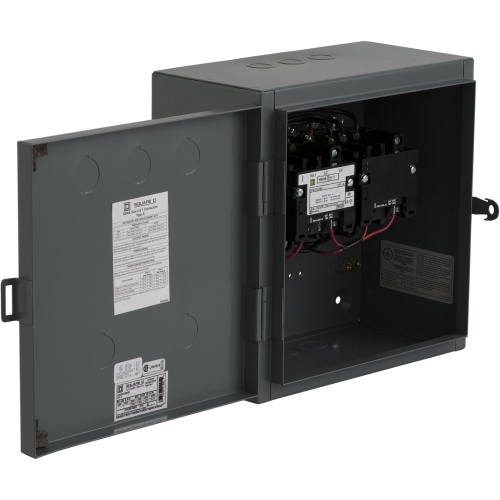

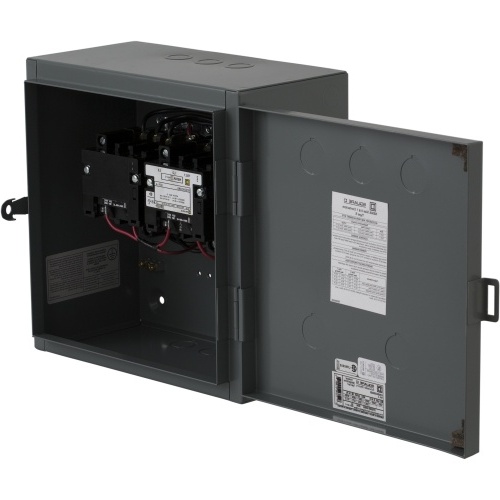

Schneider Electric 8702SCG8V02S NEMA Contactor, Type S, reversing, Size 1, 27A, 3 pole, 3 Phase, horizontal, 110/120 VAC 50/60 Hz coil, NEMA 1
Normally In Stock
Code: 103889
Buy Schneider 8702SCG8V02S 27 A Separate control circuit Fuse not supplied No control units 3P 1 110 V AC 50 Hz, 120 V AC 60 Hz Reversing 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC NEMA 1 painted sheet steel 3 Phase CSA, UL Listed Type S NEMA Contactors and
Condition: New
CALL FOR LEAD TIME$1307.42
Sale Price
$1089.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Contactor, Type S, reversing, Size 1, 27A, 3 pole, 3 Phase, horizontal, 110/120 VAC 50/60 Hz coil, NEMA 1
Specifications
Starter Coil Voltage
120 VAC
Starter NEMA Size
1
Starter Actions
Reversing
Starter Enclosure Type
NEMA 1
Starter HP
7.5 HP @ 200 VAC
Starter HP
7.5 HP @ 230 VAC
Starter HP
10 HP @ 460 VAC
Starter HP
10 HP @ 575 VAC
Starter Coil Voltage
110 VAC
Component
NEMA Contactor
Sub Component
NEMA Type S Contactor
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
27 Amp
Starter Frequency
50/60 Hz
Starter Reversing Capability
Reversing
Starter Actions
Type S
Features
Used to switch where overload protection is separately provided
available in NEMA Sizes 00-7
Wide variety of enclosures
