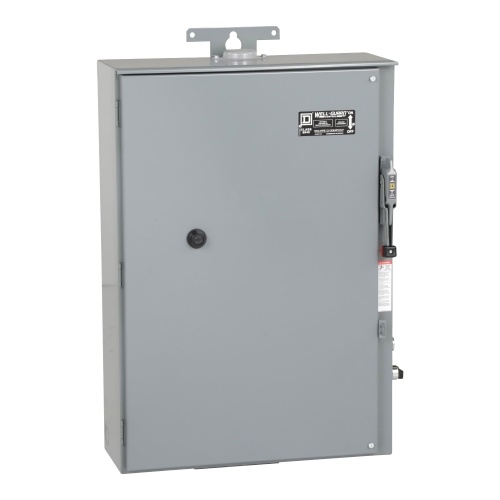

Schneider Electric 8940SSE4050L9 Well-Guard Pump Panel Size 3, Motor Logic SSOLR, 480 VAC, NEMA 3R +Options
Normally In Stock
Code: 101725
Buy Schneider 8940SSE4050L9 Common control circuit 90 A 3 3 480 V AC 60 Hz, 440 V AC 50 Hz Fusible disconnect switch Motor Logic solid state class 10/20 H or K Selector switch HAND-OFF-AUTO, Push-button START 100 A Overload, Phase loss, Phase unbalance Well-Guard Control 21389 -
Condition: New
Normally Stocked$5714.16
Sale Price
$4761.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Contactor, Definite Purpose, 50A, 3 pole, 30 HP at 575 VAC, 3 Phase, 277 VAC 60 Hz coil, open
Specifications
Starter NEMA Size
3
Starter Coil Voltage
480 VAC
Starter Enclosure Type
NEMA 3R
Starter HP
50 HP @ 480 VAC 3 Phase
Starter Coil Voltage
440 VAC
Starter Actions
Motor Logic Solid State
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
90 Amp
Starter Actions
Fusible Disconnect Switch
Features
Well-Guard pumping plant panels are designed for pumping applications
These panels provide extra space for field installation of auxiliary equipment
These panels use Type S non-reversing magnetic starters
Panel has a 100A fusible disconnect switch for Class H or K fuses
This panel has a 3 pole NEMA Size 3 non-reversing starter that has a 90 ampere rating
This NEMA Size 3 starter has maximum of 40 HP and 50 HP ratings three phase
This non-reversing NEMA motor starter has a Motor Logic overload relay with a 30A to 90A range to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
The starters in these panels are available with a wide variety of replaceable coil voltages
The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control
A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter
This short enclosure is 36.97 inches tall, 24.57 inches wide and 10.39 inches deep
A wide variety of accessories are available for Type S starters
This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch
These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment
They are also CSA certified.
